D-Link DCS-5030L
HD Pan & Tilt Wi-Fi Camera
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
View more, do more and protect more of what you love with the clarity and mobile control of D-Link’s HD Pan & Tilt Wi-Fi Camera (DCS-5030L) surveillance solution. Experience confident clarity and total control with 720p HD recording and ultrasmooth pan, tilt and digital zoom functionality. Integrated sound & motion-sensing plus night-vision technology provide ‘round-the-clock surveillance when you’re most vulnerable, and with easy installation you’ll have an effective, affordable home or business surveillance solution up and running in no time. Stream live 720p HD video to your smartphone or tablet with the free mydlink Lite app for remote monitoring and experience the peace of mind D-Link provides with HD Pan & Tilt Wi-Fi Camera.
Monitor More in HD 720p
The HD Pan & Tilt Wi-Fi Camera delivers the confidence of 720p HD video clarity,
ensuring rich detail and crisp image quality for your surveillance recording. You can
quickly scan a wide area from the app with a few simple gestures and the DCS-5030L
can also be set to move to specific preset positions, allowing you to focus on particular
areas of interest automatically within your surveillance area. Record directly to a microSD
card up to 128 GB for hassle-free recording and playback2
or simply add a mydlink
Camera Recorder (DNR-202L) to locally record up to 4 D-Link Wi-Fi Cameras for a
scalable alternative for recording and storing video.
Convenient Access Anytime, Anywhere with mydlink®
Enhanced with mydlink® support, the HD Pan & Tilt Wi-Fi Camera makes it easy and
convenient for you to look after your family, pets, home or small business. Access your
camera through the free mydlink Lite mobile app or website to view and manage your
camera through your tablet, smartphone, laptop or desktop, no matter where you are.
Technical Specifications:
Camera Hardware Profile
- 1/4" 1-megapixel progressive CMOS sensor
- Pan Range: 340° / Tilt Range: 120°
- 16 ft night vision with infrared LEDs
- Minimum illumination: 0 lux with IR LEDs on
- Built-in microphone
- 4x digital zoom
- Focal length: 2.38 mm
- Aperture: F2.2
- Angle of view:
- (H) 94.4°
- (V) 59.3°
- (D) 110.4°
External Device Interfaces
- Power LED
- Reset button
- WPS button & LED
- microUSB power connector
- microSD/SDXC card slot
- 10/100Base-T Fast Ethernet Port
Image Features
- Adjustable image size and quality
- Time stamp and text overlays
- Flip and mirror
Video Compression
- Simultaneous H.264/MJPEG format video compression
- JPEG for still images
Video Resolution
- 1280 x 720 at up to 30 fps
- 640 x 480 up to 30 fps
- 320 x 240 up to 30 fps
Audio Support
- G.711
Mobile Support
- mydlink Lite app available for iOS, Android devices and Windows Phones
- mydlink + app available for iOS and Android devices
Network:
Network Protocols
- IPv4, ARP, TCP, UDP, ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client
- DDNS Client (D-Link)
- SMTP Client
- FTP Client
- HTTP Server
- PPPoE
- UPnP Port Forwarding
- LLTD
Security
- Password authentication
- HTTP digest encryption
Physical:
Dimensions (W x H x D)
- 4.29 x 5.26 x 4.58 inches
Weight
- 0.64 lbs
Power Input
- 5 V DC / 1.5 A, 50/60 Hz through power adapter
Temperature
- Operating: 32 to 104 °F (0 to 40 °C)
- Storage: -13 to 158 °F (-25 to 70 °C)
Humidity
- Operating: 20% to 80% non-condensing
- Storage: 5% to 90% non-condensing
Certifications
- CE
- CE LVD
- FCC Class B
- ICES
Product Views:
|
 |

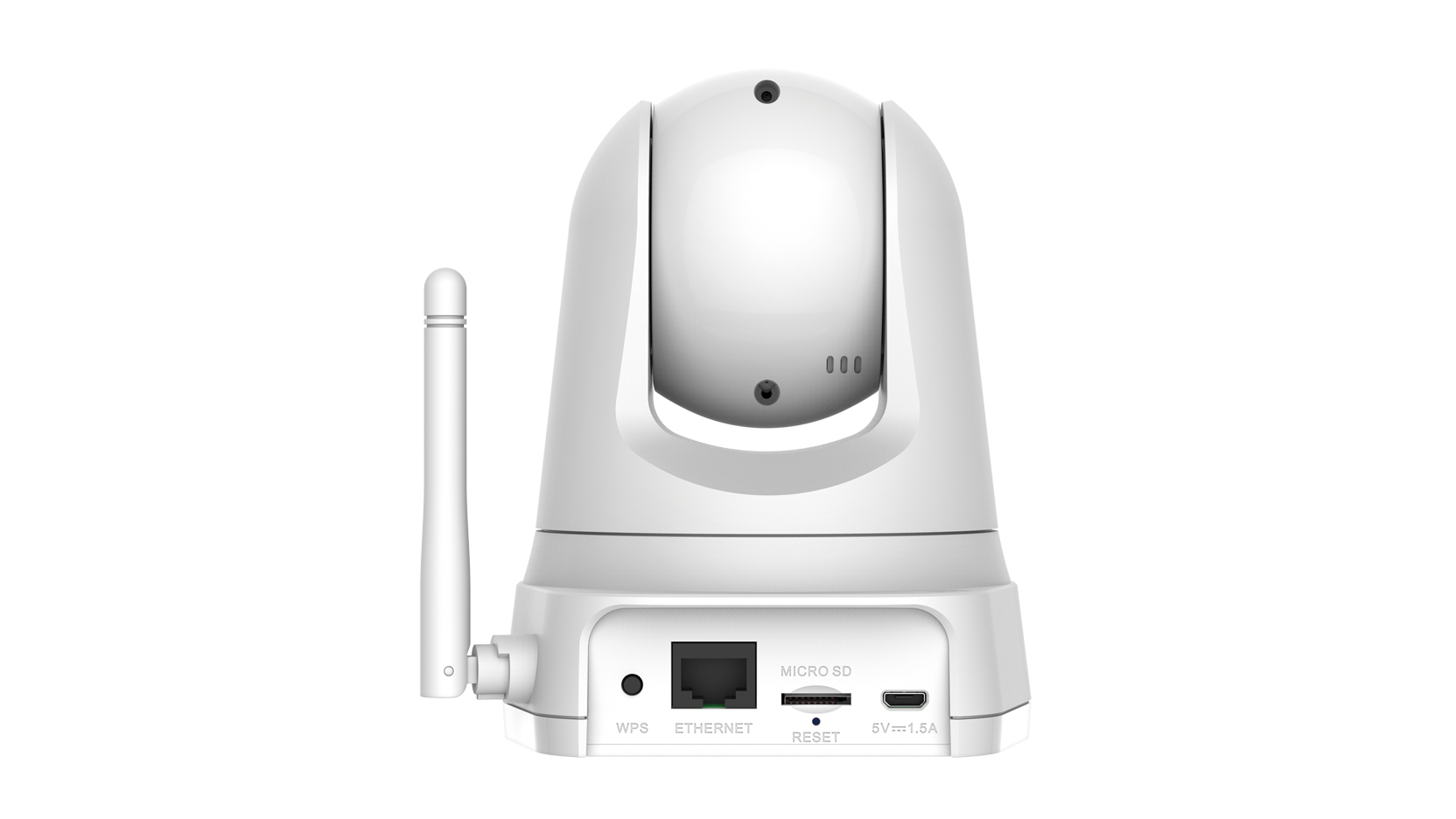

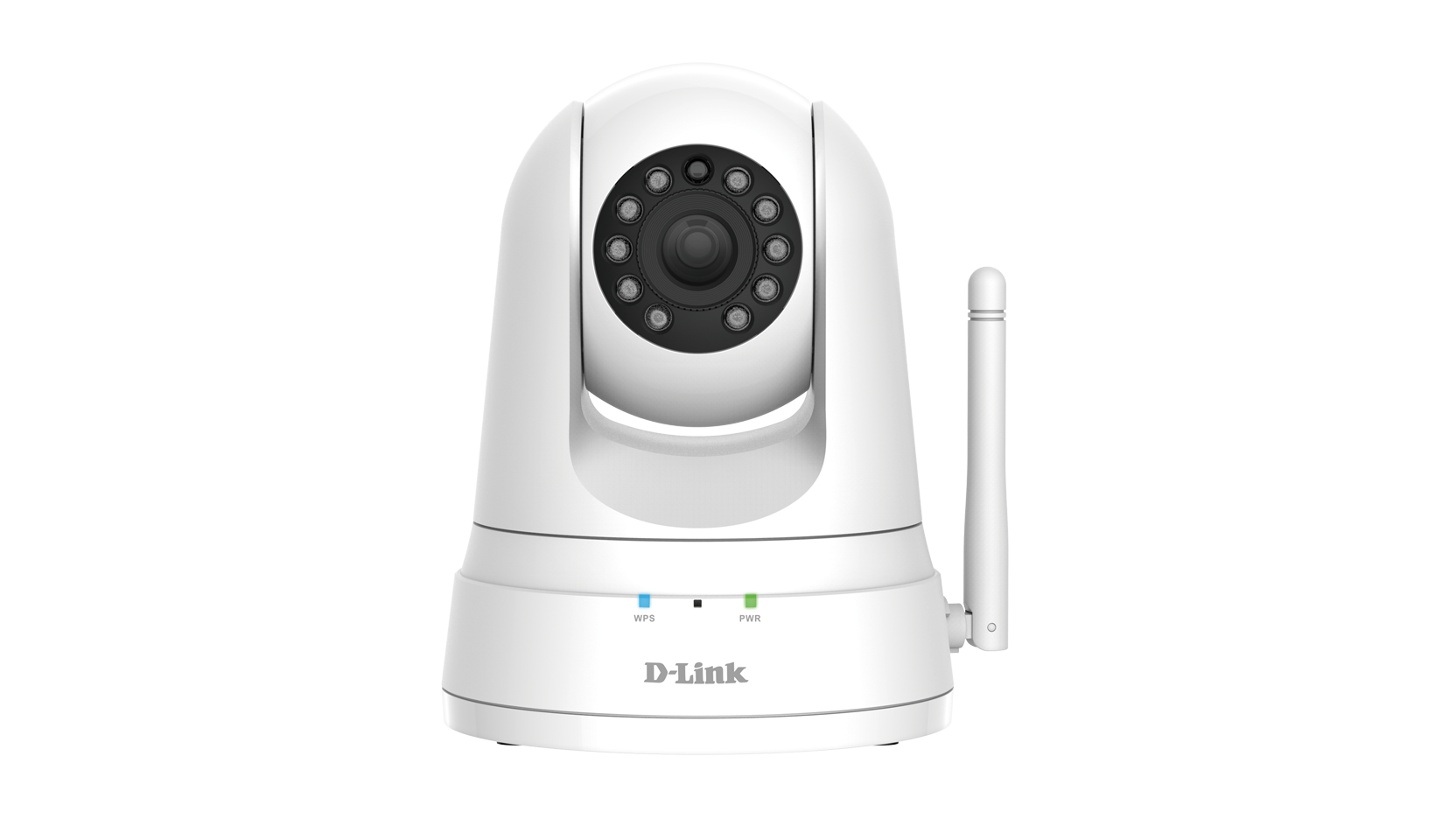

| D-Link DCS-5030L Front View | D-Link DCS-5030L Back View |
 |
 |

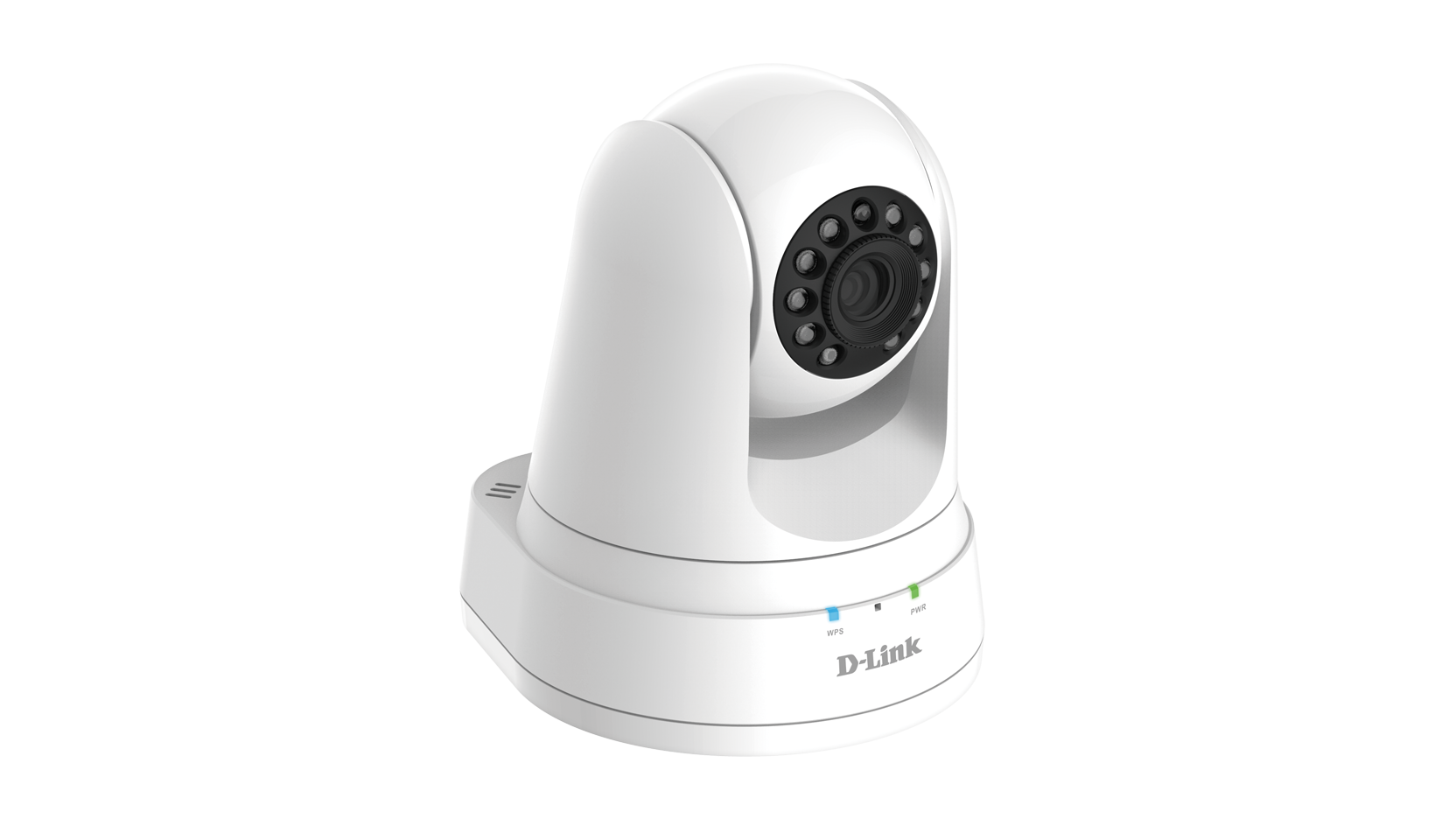

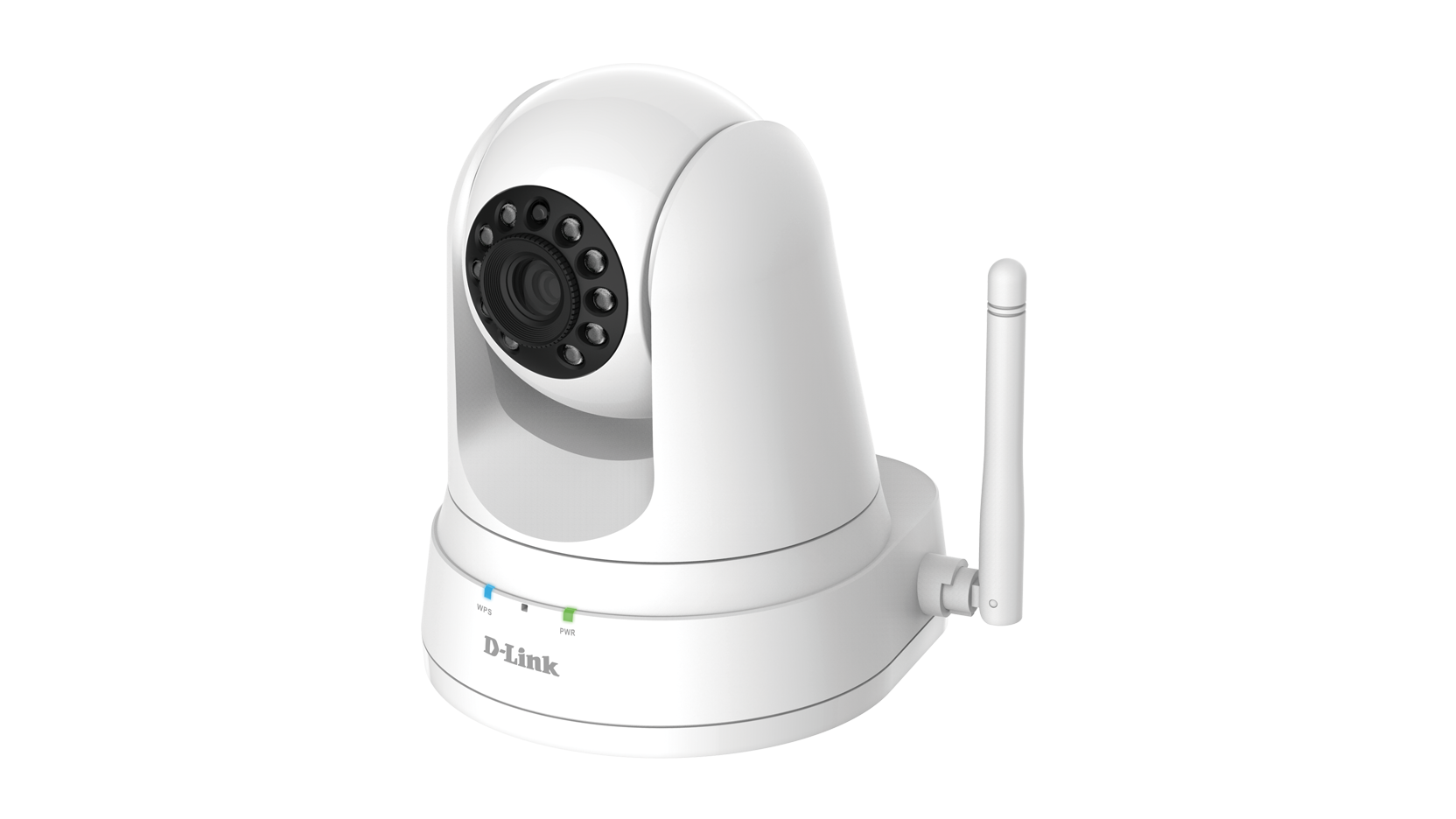

| D-Link DCS-5030L Right View | D-Link DCS-5030L Left View |
Documentation:
Download the D-Link DCS-5030L Datasheet (PDF).
