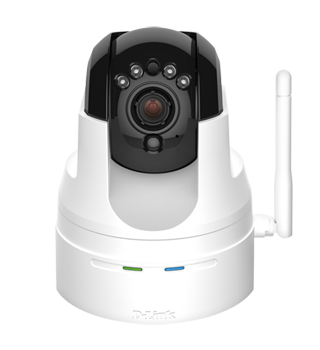

D-Link DCS-5222L
HD Pan & Tilt Wi-Fi Camera

D-Link DCS-5222L

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

View more, do more, protect more with the clarity and mobile control of D-Link’s HD Pan & TIlt Wi-Fi Camera DCS-5222L surveillance solution. Download the free mydlink app and monitor your home or business – anywhere, anytime – on your smartphone or tablet. Experience confident clarity and total control with the DCS-5222L 720p HD recording and ultra-smooth pan/tilt and digital zoom functionality. Integrated sound & motionsensing plus night-vision technology provide round-the-clock surveillance when you’re most vulnerable, and with easy installation you’ll have an effective, affordable home or business surveillance solution up and running in no time. Experience the peace of mind D-Link provides with HD Pan & Tilt Wi-Fi Camera.

Monitor More in HD 720p

The HD Pan & Tilt Wi-Fi Camera delivers the confidence of 720p HD video clarity, ensuring rich detail and crisp image quality for your surveillance recording. And with integrated night-vision and PIR motion-sensing technology, the DCS-5222L remains vigilant 24 hours a day, whether you’re there or not. The camera features a microSD card slot for hassle-free recording and playback. No additional PC, network video recorder, or other device is needed. Enjoy the easy and efficient alternative for recording and storing video.

Convenient Access Anytime, Anywhere with mydlink

Enhanced with mydlink support, the HD Pan & Tilt Wi-Fi Camera makes it easy and convenient for you to look after your family, pets, home or small business. With a mydlink enabled camera, you can stay connected to everything you love from anywhere, anytime. Access your camera through the mydlink website or one of the mydlink mobile apps to view and manage your camera through your desktop, laptop, tablet or mobile phone, no matter where you are.

See more of your spaces

With easy pan & tilt control and 98º wide angle lens, you can see more of your rooms, pets, and kids.

Home security in high definition.

Crisp HD video gives you a clear view of what's going on at home. See more of your faces and places - it's home security with an eye for detail.

Responsive recording

Your camera begins recording automatically to a microSD card when it senses changes in your home.

Be there. Even when you’re not.

Check in on the people and places you love whenever you’d like with our free mydlink app.

Easy to set up. Even easier to expand.

Get your DCS-5222L set up in minutes, and place it just about anywhere in your home. Easily add cameras to cover new spaces and new additions.

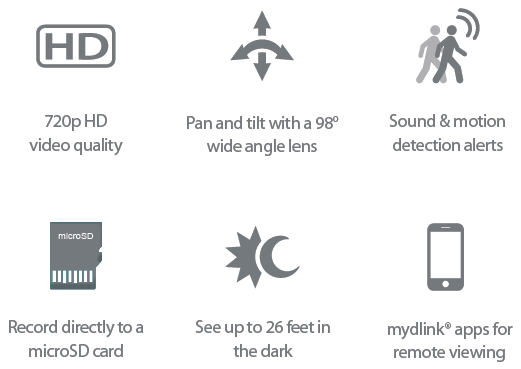

Features:

Premium Resolution and Visibility

  • Wide angle lens gives you a 98o view of your home or small business
  • Pan & tilt function to see a larger area
  • HD 1280x720p resolution for crisp, clear video
  • See up to 26 feet in complete darkness with built-in IR LEDs
  • Supports H.264/M-JPEG video codecs
  • 10x digital zoom for close-up viewing
  • Built-in microphone and speaker for 2-way audio

Security

  • PIR sensor for enhanced motion detection triggers auto-recording or e-mail/push alerts
  • microSD card slot for local recording
  • Recording continuously, based on event triggers or according to a schedule
  • Save snapshots/video clips to your mobile device

Ease of Use

  • Uses the Wireless N technology so you can install the camera anywhere with ease
  • WPS support for easy wireless connection

Convenient Control with mydlink Support

  • mydlink app support for iPhone, iPad, Android and Windows phone
  • mydlink portal for easy viewing and management

Technical Specifications:

DCS-5222L Specifications

D-Link DCS-5222L Specifications
Camera
Hardware Profile
  • 1/4” Megapixel progressive CMOS sensor
  • 26 feet IR illumination distance
  • Minimum illumination 0 Lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Built-in Passive Infra-Red (PIR)
  • Built-in microphone and speaker
  • Fixed length 4.57 mm
  • Aperture F1.9
  • Field of view:
    • (H) 45.7° (A1) / 98° (B1/B2)
    • (V) 29.5° (A1) / 52° (B1/B2)
    • (D) 52.9° (A1) / 115° (B1/B2)
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable shutter speed, brightness, saturation, contrast, mirror, flip
Video Compression
  • JPEG for still images
  • H.264/MJPEG format simultaneous compression
  • H.264 multicast streaming
Video Resolution
  • 16:9 (support frame rate up to 30 fps)
    • 1280 x 720
    • 800 x 448
    • 640 x 360
    • 480 x 272
    • 320 x 176
Pan/Tilt/Zoom
  • Pan Range: -170° to 170°
  • Tilt Range: -20° to 100°
  • Digital Zoom: 10x
  • Manual pan speed: 5-80°
  • Manual tilt speed: 5-80
  • Pre-set setting: 32 points
Audio Support
  • G.711
  • AAC
Network
Network Protocols
  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • RTP, RTSP, RTCP
  • 3GPP
Security
  • Password authentication
  • Administrator and user group protected
  • HTTP and RTSP digest encryption
Wireless Connectivity
  • 802.11n/g/b wireless with WEP/WPA/WPA2 security
  • WPS
System Integration
System Requirements for Web Interface
  • Operating system: Microsoft Windows 8/73 , XP3 , Vista3 or Mac OS X (10.5 and above)
  • Browser: Internet Explorer 8, Firefox 12 or above, Safari 4 or above, Chrome 20 or higher with Java installed and enabled
Event Management
  • Event notification and uploading of snapshots/video clips via e-mail (SMTP) or FTP
  • Motion detection
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive via web browser
Mobile Support
  • mydlink Lite app for iOS, Android and Windows
  • mydlink+ app for iOS and Android
General Specifications
Power 12 V DC 1.25 A, 50/60 Hz
Max. Power Consumption 10.5 watts
Operation Temperature 32 to 104° F (0 to 40° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operation Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Dimensions 4.46 x 4.46 x 4.92 inches
Weight 0.75 lbs
Certifications
  • FCC Class B
  • CE
  • CE LV D
  • C-Tick
Warranty
Warranty 1-Year Limited Warranty

Product Views:

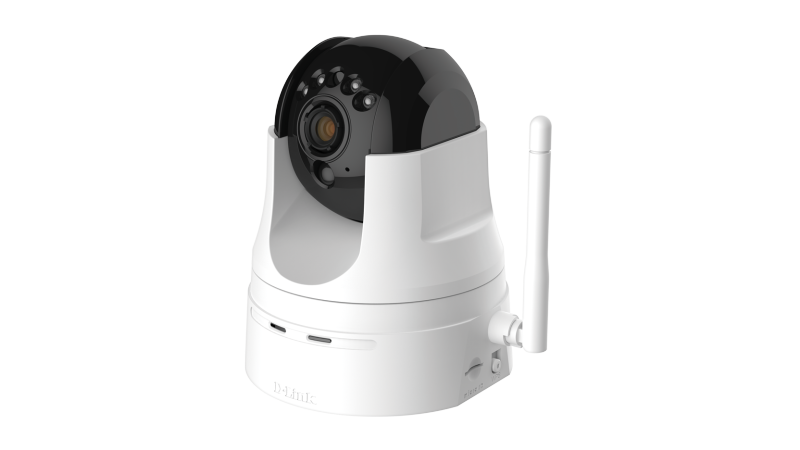

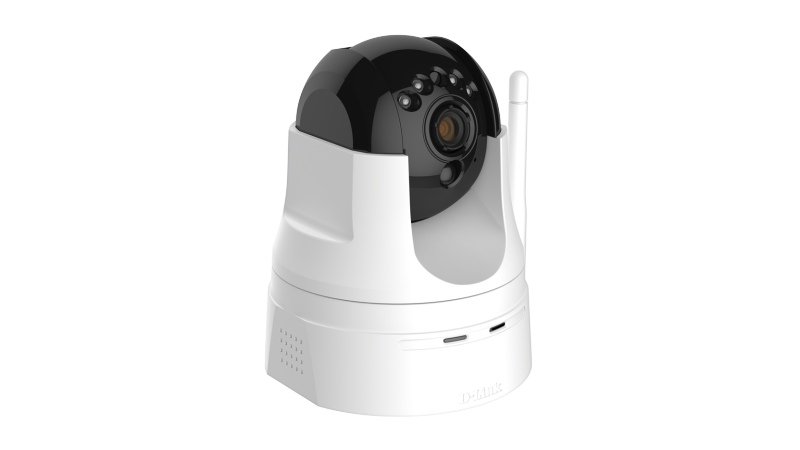

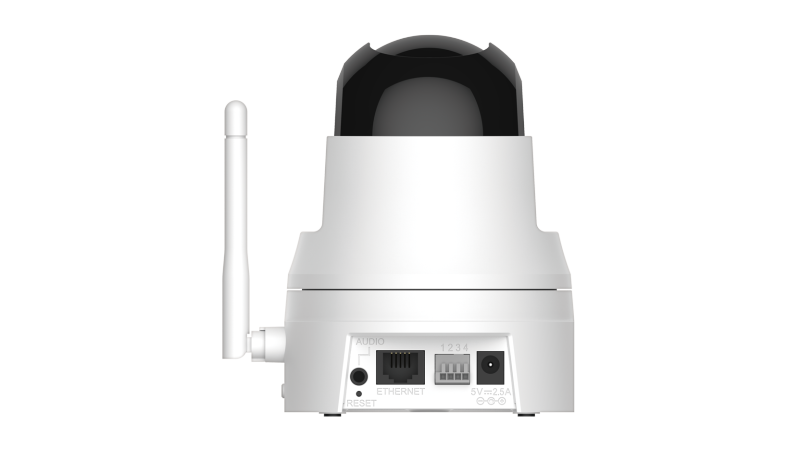

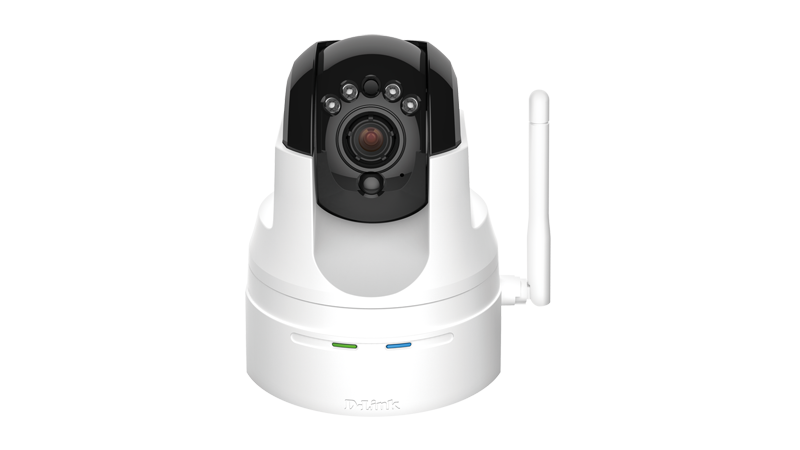

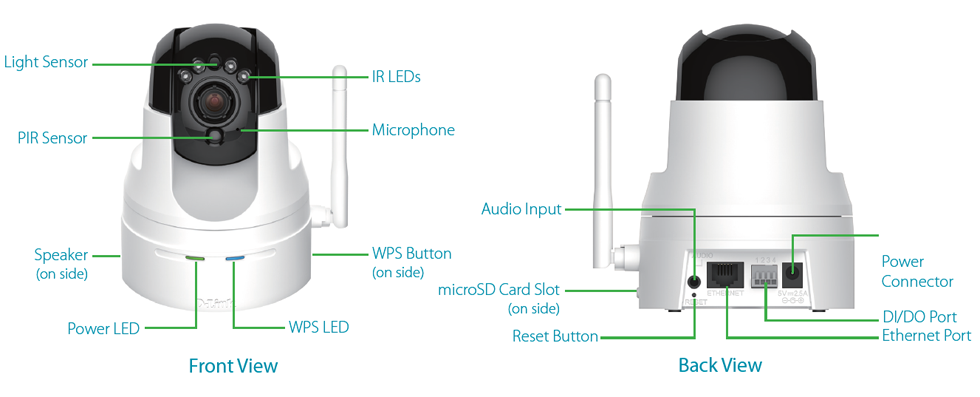

Front View Back View Left Angle View Right Angle View
Front View Back View Left Angle View Right Angle View

Documentation:

Download the D-Link DCS-5222L Datasheet (PDF).
