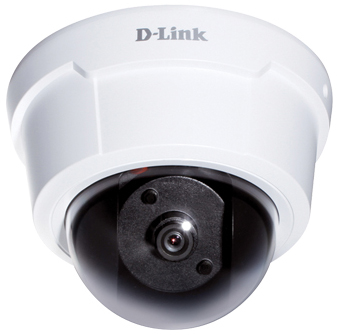

D-Link DCS-6112
2 MP Full HD Indoor Dome IP Camera

D-Link DCS-6112

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Inside View

The DCS-6112 and DCS-6113 Full HD Fixed Dome IP Cameras feature 2 megapixel resolution (Full 1080p HD) and H.264 compression that enable high-quality video footage to be recorded. The DCS-6113 is capable of capturing video in both dark and light environment due to its built-in IR LEDs and mechanical IR-cut filter. Both cameras feature a 3-axis gimbal that allows for flexible observation area adjustment. With the free bundled D-ViewCam 32-channel recording software, these IP cameras provide a complete solution for high quality live viewing and reliable recording. The DCS-6112 and DCS-6113 also have a built-in microSD card slot which can be used for local backup by storing important events on a retrievable microSD card.

Full HD in an Aesthetic Indoor Dome
A great fit for retail, hospitality, education and general indoor surveillance, the DCS-6112 Dome IP Camera features 2 megapixel resolution (Full 1080p HD) and H.264 compression that enable high-quality video footage to be recorded. The DCS-6112 features a 3-axis gimbal that allows for flexible installation and lens positioning and it also has a built-in microSD card slot which can be used for local backup by storing important events on a retrievable microSD card.

Multiple Video Streams
The DCS-6112 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. The DCS-6112 supports multiple independent streaming profiles, each with its own resolution, frame rate and codec.

Tamper Detection
Anti-tamper features make the DCS-6112 suitable for tamper-prone locations. The electronic tamper detection system can sense whenever the camera has been redirected, defocused, blocked or spray-painted, and respond promptly with a notification.

Flexible Connectivity
The DCS-6112 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

5-Year Warranty
D-Link stands behind the quality of the DCS-6112 with an industry leading 5-year limited warranty.1

Convenient Management with D-ViewCam
The included D-Link D-ViewCam™ is sophisticated software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive. D-ViewCam™ also allows you to upload a floor plan of your business, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is a global standard for open IP video networking. The DCS-6112 is ONVIF compliant and therefore interoperable with other manufacturer’s ONVIF compliant Video Management Software and NVRs.

1 5-Year Limited Warranty available only in the USA and Canada.

Features:

  • 2 Megapixel CMOS progressive sensor
  • Real-time H.264, MPEG-4 and Motion JPEG compression
  • Full HD resolution (1080p) to capture crisp and clear video
  • H.264, MJPEG & MPEG-4 compression codec for distribution and recording of high definition video
  • Fixed lens 4.0 mm f1.5
  • Max. resolution 1920x1080 at 15 fps, 720p at 30fps
  • Four simultaneous streams
  • Built-in mechanical IR-cut filter for day/night surveillance2
  • Built-in IR LED to support dark environments with 0 lux illumination2
  • 2 Alarm Inputs/ 1 Alarm Output
  • Power over Ethernet(PoE)
  • Tamper detection
  • Motion detection
  • Advanced event management
  • ePTZ image manipulation
  • microSDCard slot
  • 2-way audio support
  • 1 digital input/ 1 digital output
  • Analog AV output(NSTC/PAL)
  • 3GPP mobile surveillance
  • IPv6, 802.1x,QoS, Cos
  • Built-in Samba clientforNAS
  • ONVIF-compliant
2 DCS-6113 only

Technical Specifications:

D-Link DCS-6112 Specifications
  DCS-6112 DCS-6113
Hardware Profile
  • 1/2.7" 2 Megapixel CMOS progressive sensor
  • Minimum Illumination: 0.12 lux
  • Lens: fixed length 4.0mm, f1.5, 16x digial zoom
  • 1/2.7" 2 Megapixel CMOS progressive sensor
  • Minimum Illumination: 0 lux (with IR illuminator)
  • Lens: fixed length 4.0mm, f1.5, 16x digial zoom
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Built-in Infrared Illuminators (10 M / 30 ft.)
Field of View Horizontal: 73.5°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 5 Configurable privacy masks zone
  • Configurable, white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • H.264/MPEG4/MJPEG compression (simultaneous operation)
  • JPEG for still images
Video Resolution
  • 1920 x 1080 @ 15fps
  • 1280 x 720 @ 30fps
  • 320 x 240 @ 30fps
  • 1280 x 1024 @ 20fps
  • 640 x 480 @ 30fps
  • 176 x 144 @ 30fps
Audio Support
  • 2-way Audio Support
  • Audio Mute Function
  • GSM-AMR speech encoding, 4.75 to 12.2 Kbps
  • MPEG-4 AAC audio encoding, 16 to 128 Kbps
External Device Interface
  • microSD card slot
  • Digital I/O
  • External AV Output: NTSC/PAL switch
Network
Network Protocols
  • IPv4
  • IPv6
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • 3GPP
  • LLTD
  • CoS/QoS
  • SNMP
  • IGMP
  • 802.1x
  • ONVIF Compliant
Connectivity 1 x 10/100BaseT (Ethernet) with PoE
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
  • HTTPS streaming
  • Remote client access control
System Management
System Requirements for Web Interface
  • Operating System: Windows 7, Windows Vista, Windows XP, Windows 2000
  • Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari
D-ViewCam™ System Requirements
  • Operating System: Windows 7, Windows Vista, Windows XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP
Event Management
  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Multiple event notification
  • Tamper detection
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple recording methods for easy backup
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
D-ViewCam™ Software Functionst
  • Remote management control of up to 32 cameras
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
General Specifications
Power Input 12V DC 1.25 A, 50/60 Hz, 802.3af PoE
Max. Power Consumption 4.4 watts 5.3watts
Operating Temperatur 0° to 40° C (32 to 104° F)
Storage Temperature -20° to 70° C (-4° to 158° F)
Humidity 90% non-condensing
Weight 16.44 ounces (446 grams) 16.65 (472 grams)
Certifications
  • CE (Class A)C
  • E LVD (EN60965-1)
  • FCC (Class A),
  • ICES-003,
  • C-Tick
Dimensions
  • Width (Base): 5.12" (130mm)
  • Height: 3.85" (97.8mm)
Warranty
Warranty 5-Year Warranty1
1 5-Year Warranty available only in the USA

Documentation:

Download the D-Link DCS-6112 and DCS-6113 Datasheet (PDF).
