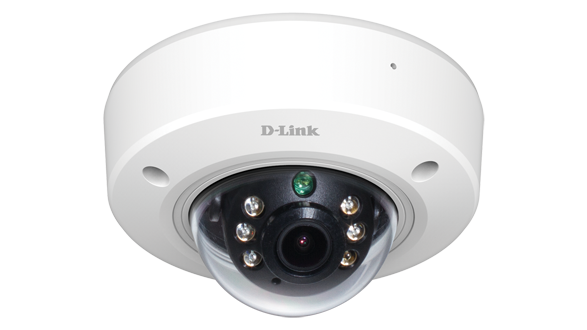

D-Link DCS-6212L
Full HD Outdoor PoE Mini Dome Camera

D-Link DCS-6212L

Sorry, this product is no longer available, replace by the DCS-4602EV. Please contact us for more information.

Overview:

The Full HD Outdoor PoE Mini Dome Camera (DCS-6212L) features industry-leading HD 1080p, 2 megapixel resolution and H.264 compression that enables high-quality video recording. The DCS-6212L connects to a network to provide live HD video over the Internet. It can even capture video in both light and dark environments thanks to built-in IR illuminators and an IR-cut removable filter. With advanced event management, motion detection, a microSD card slot, and more, the DCS-6212L gives you a versatile surveillance solution that can be used in a larger security system or as a standalone solution.

Full HD Surveillance

The Mini Dome Camera delivers Full HD 16:9 widescreen IP video surveillance which provides vivid HD video, making it easier to view and monitor footage. Record footage to a microSD/SDXC card up to 128 GB for hassle-free recording and playback or easily add a mydlink Camera Recorder (DNR-202L) to locally record up to 4 D-Link Wi-Fi Cameras for a scalable alternative for recording and storing video. The DCS-6212L also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Anywhere Access with mydlink

The Full HD Outdoor PoE Mini Dome Camera is mydlink-enabled, which means that you can access and configure your camera remotely with the mydlink website, or by downloading the mydlink mobile app and view your live video directly on your iOS, Android device or Windows Phone. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road -- mydlink makes it all possible.

D-ViewCam for Management

The DCS-6212L includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where the cameras are located, further simplifying the management process.

Features:

Camera

  • 1/3” 2 megapixel progressive scan CMOS sensor
  • Fixed 2.8 mm lens, F2.0
  • 30 feet IR illumination distance
  • IP-65 weatherproof housing
  • IK-10 vandalproof for durable protection

Video & Audio

  • Real-time simultaneous H.264/MJPEG compression
  • Maximum resolution: 1920 x 1080 @ 30 fps
  • Simultaneous multi-stream support
  • Built-in microphone and speaker for two-way audio
  • Motion & sound detection
  • Privacy mask

Connections

  • Power over Ethernet (PoE)
  • microSD card slot for onboard storage
  • 5 V DC input connector
  • Built-in Samba client for saving to a NAS
  • Support multiple access lists

Cloud-Enabled with mydlink

  • Remotely manage from anywhere using the mobile app or through the mydlink portal
  • Simplified setup through the mydlink portal with D-Link Zero Configuration technology

Technical Specifications:

D-Link DCS-6212L Specifications
Camera
Hardware Profile
  • 1/3" 2 Megapixel Full HD progressive CMOS sensor
  • Lens Focal length: 2.8 mm
  • Lens Aperture: F2.0
  • Field of view:
    • 84° Horizontal
    • 46° Vertical
    • 97° Diagonal
  • Minimum object distance: 11"
  • Minimum illumination: 0 lux (IR LED on)
  • Two-way audio with the built-in microphone and speaker
  • 10x digital zoom
Camera Housing
  • IP-65 compliant weatherproof housing
  • IK-10 compliant vandalproof housing
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, and sharpness
Video Compression
  • Simultaneous H.264/MJPEG triple format compression
  • H.264 multicast streaming
  • JPEG for still images
Video Resolution
  • 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps 3
  • 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 592, 640 x 480 up to 30 fps 3
Audio Compression
  • G.711
  • AAC
External Device Interface
  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE Class 2
  • microSD/SDHC/SDXC card slot 1
Network
Network Protocols
  • IPv6, IPv4, ARP, TCP/IP, UDP, ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP/HTTPS
  • Samba client
  • PPPoE
  • UPnP/UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • DSCP
  • Multicast
  • IGMP
  • ONVIF compliant
  • Bonjour
  • SNMP v1, v2c, v3
Security
  • Administrator and user group protection
  • HTTP and RTSP authentication
Recording
microSD Card Slot
  • Supports microSD/SDHC/SDXC
  • Up to 128 GB
mydlink Camera Recorder (DNR-202L)
  • Supports 2 external USB hard drives up to 4 TB each
  • Records up to 4 D-Link Wi-Fi Cameras
  • DNR-202L and USB hard drives sold separately
System Management
System Requirements for Web Interface
  • Operating system: Microsoft Windows 8/7/Vista/XP or Mac with OS X 10.6 or higher
  • Browser: Internet Explorer, Firefox or Safari
Event Management
  • Motion detection
  • Sound detection
  • Event notification and uploading of snapshots/video clips via email or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notification
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive via web browser
  • Configuration interface accessible via web browser
D-ViewCam System Requirements
  • Operating system: Microsoft Windows 8/7/Vista/XP
  • Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions in web interface
  • Scheduled motion triggered, or manual recording options
General Specifications
Power
  • 5 V DC, 1.2 A through external power adapter or PoE connection
  • External Power Adapter Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
  • 4.6 watts max. ± 5% (using a 5 V DC adapter)
  • 6.1 watts max. ± 5% (using PoE)
Operating Temperature -13 to 113 °F (-25 to 45 °C)
Storage Temperature -4 to 158 ˚F (-20 to 70 ˚C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • IP65
  • C-Tick
  • IK-10 Certified
Weight 9.88 ounces
Dimensions 4.07 x 4.07 x 2.42 inches
Package Contents
  • Full HD Outdoor PoE Mini Dome Camera (DCS-6212L)
  • 5 V DC 1.2A Output Power Adapter
  • Quick Installation Guide (QIG)
  • CAT5e Ethernet Cable
  • RJ-45 Coupler
  • Mounting Screws
Warranty
Warranty 5-Year Limited Warranty

1 Camera is compatible with microSD/SDHC/SDXC cards up to v3.01. Supports card capacities up to 128GB. Camera is not compatible with v4.x cards.
2 Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws.
3 Frame rates when streaming video may vary depending on network conditions and method used.
4 Computer must adhere to Microsoft’s recommended system requirements.

Product Views:

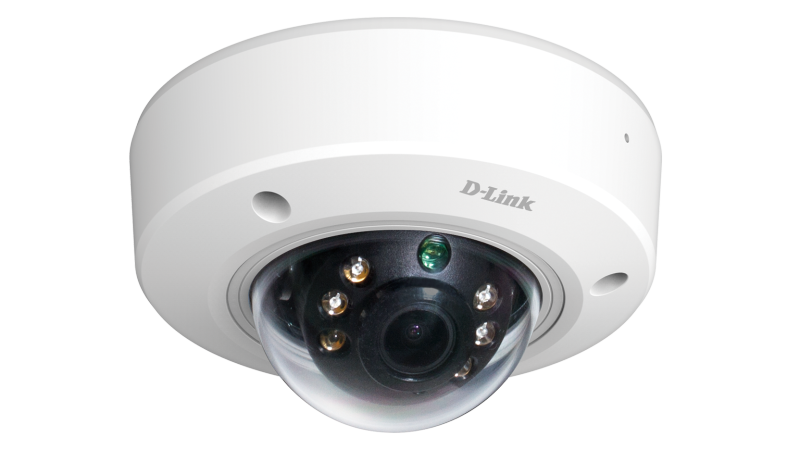

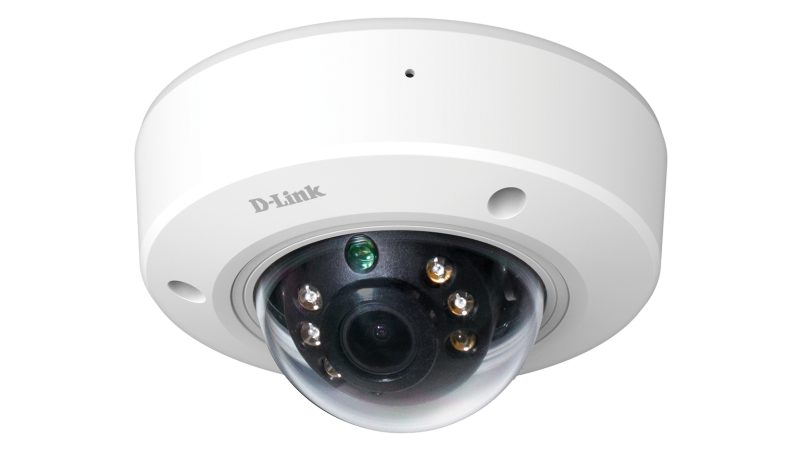

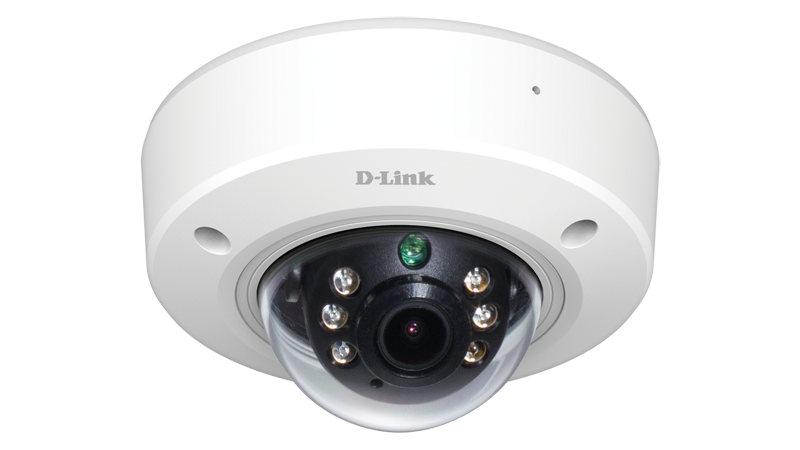

Front View Right Angle View Left Angle View
Front View Right Angle View Left Angle View
With Cables
With Cables

Documentation:

Download the D-Link DCS-6212L Datasheet (PDF).

Sorry, this product is no longer available, replace by the #DCS-4602EV
