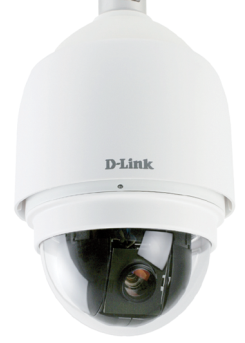

D-Link DCS-6915
Full HD Outdoor Speed Dome IP Camera

D-Link DCS-6915

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The DCS-6915 20x Full HD High Speed Dome Network Camera s a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The DCS-6915 features a 3 megapixel sensor capable of Full HD 1080P resolution, allowing for very clear surveillance footage to be taken. The powerful 20x optical zoom and 8X digital zoom ensure that you can see even the smallest details with ease.

Proportional Pan, Tilt, and Zoom Speeds
Proportional pan and tilt make it easy to precisely adjust the camera’s view. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and control. PTZ presets allow the camera to monitor specified areas along predefined paths.

Built for Tough Environments
Specially designed for use in challenging environments the DCS-6915 has a toughened metal, industry-certified IK10 (vandalproof) and IP66 (weatherproof) housing. This means that it is able to withstand sudden high impacts, as well as adverse weather conditions. Additionally, the DCS-6915 features a built-in heater and fan which enable the camera to operate in extreme environments at temperatures ranging from -40° to 122 °F (-40° to 50 °C).

Wide Dynamic Range
The Wide Dynamic Range (WDR) function of the camera provides clear images even under backlit conditions where the intensity of illumination can vary significantly. The DCS-6915 is recommended for extreme high-contrast environments, making it an ideal solution for security applications.

Mechanical IR Filter for True Day & Night Operation
The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting conditions. This feature enables the camera to capture crisp color images during the daytime, and grayscale images in low-light.

Robust Management Software
The included D-ViewCam camera management software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

Open Network Video Interface Forum (ONVIF)
ONVIF is an open industry forum for the development of a global standard forthe interface of IP based physical security products. ONVIF identifies a standardfor how IP products within video surveillance and other physical security areascan communicate with each other ensuring interoperability between productsregardless of brand. The DCS-6915 is ONVIF compliant and therefore compatiblewith many third party Video Management Software (VMS) solutions.

Features:

Camera

  • Sony Exmor 1/2.8" progressive 3 megapixel CMOS sensor
  • WDR/BLC for difficult light sources
  • 20x optical zoom and 8X digital zoom
  • F1.6 to F3.5 (W-T)
  • ONVIF Compliant

Connections

  • 10/100 Fast Ethernet port
  • microSD card slot
  • Audio in/out
  • 4 alarm inputs/2 alarm outputs

Video & Audio

  • Real-time H.264 and Motion JPEG compression
  • Full HD (1080p) resolution at 30 fps
  • HD (720p) resolution at 60 fps
  • Multi-stream broadcast
  • 2-way audio
  • G.711/G.726 audio codec support
  • Multiple access list
  • Privacy Masks

Housing

  • IP66 weather-resistant
  • IK10 vandal-proof
  • Built-in heater and fan

Technical Specifications:

D-Link DCS-6915 Specifications
Camera
Camera Hardware Profile
  • Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor
  • Variable Speed 20x Optical Zoom
  • Day & Night with Mechanical IR Filter
  • 0.1 Lux (Color); 0.01 Lux (B/W)
  • Electronic shutter speed 1/1 - 1/10,100 second
  • Wide Dynamic Range (WDR)
  • Focal Length: 4.7 to 96 mm
  • Horizontal Field of View: 52° to 4°
PTZ Hardware Profile
  • Pan travel: 360° endless
  • Tilt Travel: -10° to 190°
  • Presets: 256 points
  • Preset Accuracy: ± 0.225°
  • Preset Speed: 5° to 400° per second
  • Sequence Paths: 8
  • Auto Pan Paths: 4
  • Cruise Paths: 8
  • Pan and tilt speed proportional to zoom ratio
  • Resume after power loss
  • Home Function: Preset, Sequence, Auto pan, Cruise
  • Auto Flip: Mechanical/Digital/Off
  • Digital Slow Shutter
  • Image Freeze
  • Image Inverse
Image Features
  • Adjustable image size, quality, frame rate and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 16 configurable privacy masks
  • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • Simultaneous H.264/MJPEG format compression
  • H.264 multicast streaming
  • JPEG for still images
Video Resolution
  • 1920 x 1080 (1080P)
  • 1280 x 720 (720P)
  • 800 x 600 (SVGA)
  • 640 x 480 (VGA)
  • 1280 x 1024 (SXGA)
  • 1024 x 768 (XGA)
  • 640 x 480 (VGA)
  • 320 x 240 (CIF)
Audio Compression
  • G.726
  • G.711
External Device Interfaces
  • 4 alarm inputs
  • 2 alarm outputs
  • Audio input/output
Network
Network Protocols IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP, PPPoE, UPnP Forwarding, RTP/RTSP/RTCP, IP filtering, IGMP, IEEE802.1x, QoS, SNMP, ONVIF Compliant
Security
  • Administrator and user group protection
  • Password authentication
System Management
System Requirements for Web Interface
  • Microsoft Windows 8/7/Vista/XP/2000
  • Internet Explorer, Chrome, or Firefox
Event Management
  • Motion detection
  • Tamper detection
  • Event notification and upload snapshots/video clips via SMTP or FTP
  • Multiple event notification
  • Multiple recording methods for easy backup
  • Supports multiple HTTP, SMTP and FTP servers
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive
Operating Systems Windows 8/7/Vista/XP/2000
D-ViewCam™ System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher
D-ViewCam™ Software Functionst
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options
General Specifications
Power Input AC 24V, 3A
Max. Power Consumption Max 65W (with heater)
Operating Temperatur -40° to 122° F (-40° to 50° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
Weatherproof IP66 standards
Vandal-proof IK10 standard
Weight 5.11 lbs (2.32 kg), with sunshield
Dimensions 11.1" x 7.56" inches (282 x 192 mm)
Certifications
  • FCC (Class A)
  • CE (Class A)
  • CE LVD (EN60965-1)
  • ICES-003
  • C-Tick
Warranty
Warranty 1-Year Warranty1
1 1-Year Warranty available only in the USA

Documentation:

Download the D-Link DCS-6915 Datasheet (PDF).
