D-Link DCS-7010L
HD Mini Bullet Outdoor IP Camera

D-Link DCS-7010L

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The DCS-7010L HD Mini Bullet Outdoor Camera is a cloud-enabled IP Surveillance outdoor camera that lets you monitor an area 24 hours a day. A durable weatherproof housing and a powerful IR LED illuminator make it ideal for day and night outdoor surveillance.

24/7 HD Surveillance

The DCS-7010L is built with a megapixel image sensor to give you high quality video with resolutions up to 720p HD (up to 1280 x 800). Get a closer look with ePTZ, which lets you digitally zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily. A mechnical IR filter is also built into the DCS-7010L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with a powerful IR LED illuminator with a 30 feet range, this camera can monitor an area even in complete darkness.

Built for the Outdoors

Specially built for outdoor use, the DCS-7010L has a solid metal IP66 weatherproof housing that protects it from dirt and rain. A Power over Ethernet (PoE) port allows you to connect the camera to your network and power it through a single cable, simplifying deployment and doing away with the need for a nearby power outlet. A wire-in bracket protects cables from damage and provides a clean installation.

Anywhere Access with mydlink

The DCS-7010L is cloud-enabled, which means that you can access and configure your camera remotely, no matter where you are. See your camera’s live view through the mydlink website, or download the mydlink mobile app and view your camera directly on your iOS or Android mobile device. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink makes it all possible.

Zero Configuration

If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-7010L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your mydlink‑enabled Cloud Router with an Ethernet cable – the camera will automatically be added to your account. mydlink does the hard work for you, allowing users to set up and use their mydlink-enabled cameras immediately.

Built for Versatility

The DCS-7010L comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. Integrated video motion detection senses motion near the camera, allowing it to automatically record video and send you a notification when motion is detected. Audio in and out connectors can be connected to a microphone and speaker, allowing for 2-way communication and making the DCS-7010L ideal for use in entryways.

A Complete, Expandable Surveillance Solution

The DCS-7010L is a self-sufficient surveillance solution, capable of recording snapshots and video to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

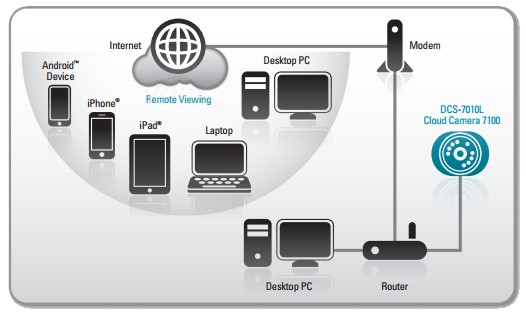

It’s never been easier to view live streaming video of your home or office:

It’s never been easier to view live streaming video of your home or office

Versatile operating temperature range. Dust, water and heat and cold-resistant. Reliable coverage for any time, any season.

Versatile operating temperature range. Dust, water and heat and cold-resistant. Reliable coverage for any time, any season.

Features:

  • RemotelyMonitorYourHomeorOfficeovertheInternet
  • IEEE 802.3af PoE
  • HDresolution 1280x720 (Max. 1280x800)
  • 2-Way Audio Support
  • SupportsH.264/MJPEG/MPEG-4 Video Codec
  • Built-In 10M IR LEDforViewingDark Environments
  • MicroSD/SDHC Card Slotfor Local Recording
  • MotionDetection toTrigger Recording and Send E-mail Alerts
  • Privacy Mask Support
  • Digital Pan/Tilt/Zoom
  • SupportforiPhone, iPad & Android Apps
  • mydlink.com Portal for EasyViewing and Management
  • Administrator/User Password Protection
  • UPnP SupportforNetwork Setup & Configuration
  • IP66Weatherproof
  • OperatingTemperature: -25°C - 50°C (-12°F - 122°F )
  • 24/7 Basic Installation Support
  • 1-Year LimitedWarranty

Technical Specifications:

D-Link DCS-7010L Specifications
Camera
Hardware Profile
  • 1/4" 1 Megapixel CMOS Sensor
  • Integrated IR Illuminator (30 ft)
  • Minimum illumination: 0 lux with IR LED on
  • Audio In and Out Jacks
  • 10x Digital Zoom
  • Lens: 4.3mm, F2.0
Field of View
  • (H) 47°
  • (V) 37°
  • (D) 60°
Camera Housing
  • IP66 compliant weatherproof housing
  • Cable in bracket
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast and sharpness
Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • JPEG for still images
Video Resolution
  • 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording
  • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording
Audio Support
  • G.726
  • G.711
External Device Interface
  • 10/100 BASE-TX Fast Ethernet port
  • Supports 802.3af PoE
  • MicroSD/SDHC card slot
  • DI/DOports
  • Audio In/Out 3.5mm Jacks
Network
Network Protocols
  • IPv4, IPv6
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client, DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • CoS/QoS
  • Multicast
  • IGMP
  • ONVIF Compliant
Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface Browser: Internet Explorer, Mozilla Firefox, or Google Chrome
Event Management
  • Motion detection
  • Event notification and uploading ofsnapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methodsfor eas
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support
  • Windows 7/Vista/XP system, Pocket PC, or mobile phone
  • mydlink mobile app for iOS and Android mobile devices
D-ViewCam System Requirements
  • Operating System: MicrosoftWindows 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: StandardTCP/IP
Surveillance Software Function
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options
General Specifications
Power
  • 5V DC, 1.2 A through external power adapter
  • External PowerAdapterInput: 100 to 240VAC, 50/60Hz
  • 802.3af (PoE)
Max. Power Consumption 5.4 watts
Operating Temperature -12 to 122° F (-25° to 50° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
Storage Humidity 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • FCC
  • C-Tick
Weight 510g ± 5%
Dimensions 2.56”x 3.17”x 6.96”(65mm x 80.5mm x 176.5mm)
Warranty
Warranty 5-Year Warranty1

1 5-YearWarranty available only in the USA.

Product Views:

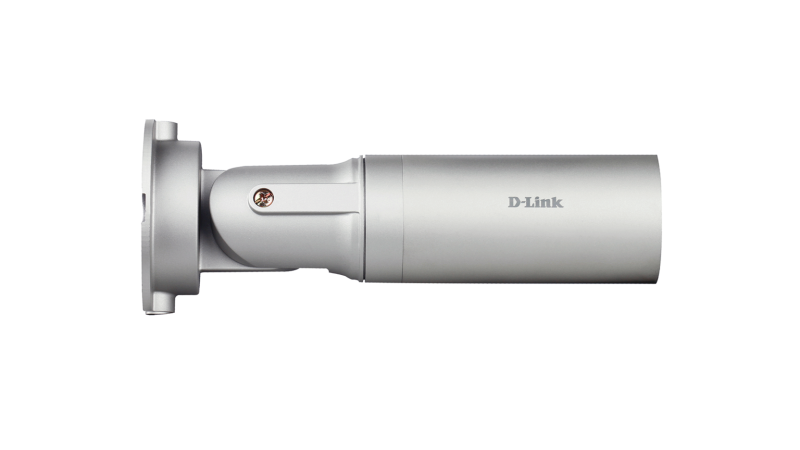

Right View Side View
Right View Side View

Documentation:

Download the D-Link DCS-7010L Datasheet (PDF).
