D-Link DCS-7110
Full HD Day & Night Outdoor Network Camera

D-Link DCS-7110

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

The D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet, capable of capturing video in both day and night environments thanks to its built-in IR LEDs and mechanical IR filter. This feature allows the camera to capture crisp color video during the daytime and detailed grayscale video at night or in low-light conditions.

Multiple Video Streams

The DCS-7110 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail.

Flexible Connectivity

The DCS-7110 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-7110 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Weather-Proof and Tamper-Proof

Designed to be mounted outdoors, the DCS-7110 is integrated into an IP66 certified housing which protects against the elements. Anti-tamper features make this camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam for Management

The included D-Link D-ViewCam is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

5-Year Warranty

D-Link stands behind the quality of the DCS-7110 with an industry leading 5-year limited warranty.*

*5-Year Warranty is for U.S. only

Features:

High Performance

1/2.7” 2 Megapixel CMOS sensor
Real-time H.264 / MPEG-4 / MJPEG
Max resolution 1920x1080 at 15 fps

Crystal Clear Video

Four (4) simultaneous streams
Built-in 4 mm, F1.5 fixed lens
45 ft IR illumination distance
Mechanical IR filter for day/night vision

Robust Security

Tamper detection
Motion detection
Privacy mask
IPv6, 802.1x, QoS, CoS
HTTPS secured streaming

Full Compatibility

Samba client
IP66 weatherproof
ONVIF compliant
12V DC, 24V AC and PoE
DI/DO socket

Technical Specifications:

D-Link DCS-7110 Specifications
Camera
Hardware Profile	Sensor: 1/4” Megapixel progressive CMOS sensor 45 feet IR illumination distance Built-in Infrared-Cut Removable (ICR) Filter module 128 Mbytes of flash memory 4 mm fixed lens , F1.5 with 65.4 degree horizontal viewing angle 256 Mbytes SDRAM
Image Features	Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays 3 configurable motion detection windows Min Illumination: 0.26 Lux (day mode), 0 Lux (night mode) with IR LED Time stamp and text overlays 5 configurable privacy masks Flip & mirror Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Functionality
Video Compression	H.264/MPEG4/MJPEG format compression simultaneously H.264 / MPEG-4 multicast streaming JPEG for still image
Video Resolution	1920x1080 @ 15 fps 1280x800 @ 30 fps 1280x720 @ 30 fps 640x480 @ 30 fps 320x240 @ 30 fps 176x144 @ 30 fps
Network
Network Protocols	IPv4, IPv6 TCP/IP, UDP, ICMP UDP ICMP DHCP Client NTP Client (D-Link) DNS Client, DDNS Client (D-Link) SMTP Client FTP Client HTTP / HTTPS Samba Client PPPoE UPnP Port Forwarding RTP / RTSP/ RTCP IP filtering 3GPP LLTD CoS/QoS SNMP IGMP 802.1x ONVIF Compliant
Security	Administrator and user group protection Password authentication HTTP and RTSP digest encryption HTTPS streaming Remote client access control
System Management
System Requirements	Operating System: Microsoft Windows ® 7 / Vista / XP Browser: Internet Explorer, Mozilla Firefox
Event Management	Motion detection Event notification and upload snapshots/video clips via HTTP, SMTP or FTP Supports multiple HTTP, SMTP and FTP servers Multiple event notification Multiple recording methods for easy backup
Remote Management	Configuration accessible via web browser Take snapshots/video clips and save to local hard drive or NAS via web browser
D-ViewCam System Requirements	Operating System: Microsoft Windows 7 / Vista / XP Web Browser: Internet Explorer 6 or higher
Surveillance Software Function	Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen Supports all management functions provided in web interface Scheduled motion triggered, or manual recording options
Supported PDA, Mobile Phones, and Software	Handsets with 3GPP player, Packet Video Player 3.0, QuickTime 6.5, Real Player 10.5, Windows 2000, XP
External Device Interface	DI and DO for external sensor and alarm RS485 for pan/tilt scanner
General Specifications
Power Input	Input: 12 V DC 1.25 A, 24 V AC, 50/60 Hz, 802.3af PoE
Max. Power Consumption	6.3 W
Operating Temperature	-40° to 122° F (-40° to 50° C)
Storage Temperature	-4° to 158° F (-20° to 70° C)
Operating Humidity	0% to 90% non-condensing
Certifications	CE (Class A) CE LVD (EN60965-1) FCC (Class A) ICES-003, ICES-006 C-Tick
Weight	1.78 lbs (808 grams)
Dimensions	2.68” x 1.65” x 2” (68 x 42 x 51 mm)
Warranty
Warranty	5-Year Warranty¹

¹ 5-YearWarranty available only in the USA.

Product Views:

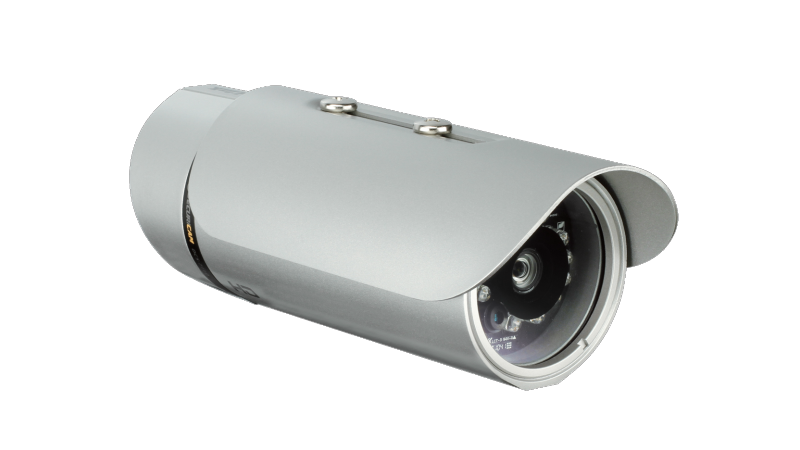

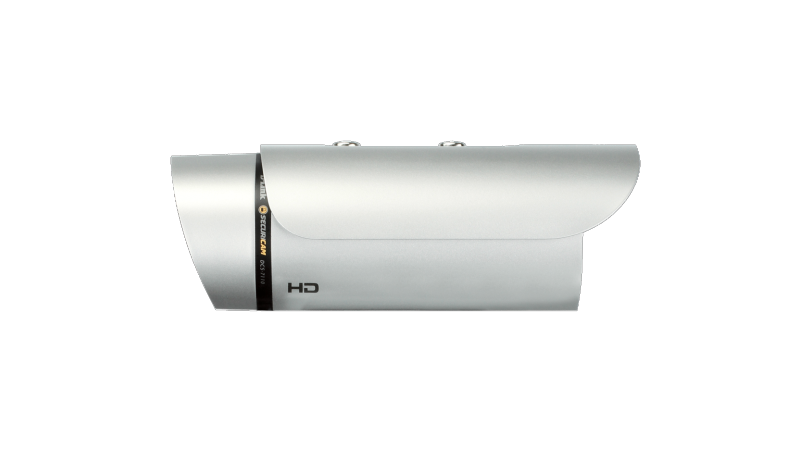

*Right View*	*Side View*

Documentation:

Download the D-Link DCS-7110 Datasheet (PDF).

D-Link DCS-7110 Full HD Day & Night Outdoor Network Camera
