D-Link DCS-800L
Day & Night Wi-Fi Baby Monitor

D-Link DCS-800L

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Keep an eye on your little one with the DCS-800L Wi-Fi Baby Monitor, no matter where you are. This portable camera transforms your mobile device into a unique and versatile baby monitor. It includes a wide array of features to help you care for your child, including instant push alerts, motion and sound detection, night vision and 2-way audio. It can even play gentle lullabies to help ease your baby to sleep!

Peace of Mind Anywhere, Anytime

The Wi-Fi Baby Monitor is specially designed to make it easy for you to care for your baby. Built for all-day monitoring, the Wi-Fi Baby Monitor turns on night vision automatically when it gets dark, giving you a clear picture day or night, so you can keep an eye on things anytime. It’s perfect for use in the home, or even when you’re away; it’s mydlink-enabled, which means that you can check on your baby remotely over the Internet.

Sophisticated Technology Helps Keep You Informed

The Wi-Fi Baby Monitor can send you notifi cations to alert you to specifi c events such as detected movement or loud noises, like your young one crying. You can easily check in with the mydlink Baby App and comfort your baby with the sound of your voice through the built-in speaker.

Perfectly Portable for Instant Monitoring Anywhere

In addition to normal home usage, you can also take the Wi-Fi Baby Monitor with you when traveling with your child, even when there is no available Internet connection. Just connect your mobile device to the Wi-Fi Baby Monitor’s wireless network for instant local monitoring, making it perfect for family vacations or just visiting friends. You can even connect it to an external USB battery3 for total portability!

mydlink™ Baby App

Getting started is a snap! The free mydlink Baby app for iPhone, iPad and Android mobile devices not only guides you step-by-step through the setup process, but also gives you an easy to use interface for all the advanced features of the Wi-Fi Baby Monitor. Check on your baby at a glance; pinch to zoom with ease. You can even take snapshots and video clips and save them directly to your mobile device!

Features

  • Night vision with infrared LEDs that turn on automatically when it gets dark
  • 802.11n wireless lets you place the camera virtually anywhere2
  • Can be powered by an external USB battery3
  • 5 soothing lullabies built-in
  • Interchangeable accent color rings

Intelligent Baby Monitoring

  • Sound detection alerts you of loud noises, such as your baby crying
  • Motion detection lets you know if the camera detects movement
  • Notifications can be sent to your mobile device for detected events
  • Two-way audio lets you hear your baby and allows you to respond and calm your child

Convenient Control With Your Mobile Device

  • The mydlink Baby app helps you set up your device and gives you easy access to all functions.
  • The free mydlink Baby app is available for iPhone, iPad and android devices
  • Also compatible with the free mydlink Lite app, available for iPhone, iPad, Android and Windows devices
1 The use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in certain jurisdictions. The end-user assumes all liability for compliance with applicable local and national laws.
2 WARNING - STRANGULATION HAZARD Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of 3 ft or 1m away). NEVER place the camera or adapter cord inside the crib or child sleeping area. Do not use extension cords. This product is NOT intended to replace proper supervision of children.
3 USB battery not included, requires at least 2 Amp output.

Technical Specifications:

D-Link DCS-800L Specifications
Camera
Hardware Profile
  • 1/5” VGA progressive CMOS sensor
  • 16 ft IR light illumination distance
  • Minimum illumination: 0 lux with IR LEDs on
  • Built-in microphone and speaker
  • Digital zoom
  • Adjustable angle and pivot
  • Focal length: 2.44 mm
  • Aperture: F2.4
  • Angle of view:
  • (H) 57°
  • (V) 42°
  • (D) 68°
Image Features
  • Pinch & Zoom in image size
  • Time stamp overlay
Video Compression
  • MJPEG video compression format
  • JPEG for still images
Video Resolution
  • 640 x 480
  • 320 x 240
Audio Support PCM
External Device Interface
  • 802.11n wireless
  • Reset button
  • Cloud LED
  • Power LED
  • Direct button
  • Power port (Micro-USB)
Baby Monitoring Features
  • Sound detection with adjustable sensitivity
  • Motion detection with adjustable sensitivity
  • Sends notifications when sound or motion is detected
  • 2-way audio lets you listen and then respond to your child
Mobile App Support
  • mydlink Baby Camera Monitor app
  • mydlink Lite
  • Compatible with iPhone and iPad using iOS 6.0 or higher
  • Compatible with Android smartphones and tablets using Android 4.1 or higher
Network
Network Protocols
  • IPv4
  • ARP
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • HTTP
  • HTTPS (for configuration)
  • UPnP port forwarding
Security
  • Administrator protection
  • Password authentication
Requirements
  • iPhone / iPad with iOS 6.0 or higher
  • Android device 4.1 or higher
  • 802.11g/n Wi-Fi network (Wireless N network recommended for optimal performance)
  • Operating System: Windows 8/7 or Mac OS X 10.6 or higher
  • Browser: IE7 or above, Chrome 20 or above, Firefox 12 or above and Safari 6 or above
  • Internet access required for remote viewing
Physical
Dimensions (L x W x H) 2.8 x 3.0 x 3.9 inches
Weight 6.0 oz
Temperature
  • Operating: 32 to 104 °F (0 to 40 °C)
  • Storage: -4 to 158 °F (-20 to 70 °C)
Humidity
  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing
Certifications
  • CE
  • CE LVD
  • IC
  • FCC
  • C-Tick
Power
  • micro USB-to-AC power adapter (included):
    • Input = 100-240 VAC, 50/60 Hz
    • Output = 5V DC, 1.2A
  • Can be powered by an external USB battery with at least 2 A output (not included)
Package Contents
  • Wi-Fi Baby Monitor (DCS-800L) with yellow ring
  • Power adapter
  • Wall mount kit
  • Blue & pink accent rings
  • Quick Installation Guide (QIG)
  • Warranty card
1 The use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in certain jurisdictions. The end-user assumes all liability for compliance with applicable local and national laws.
2 WARNING - STRANGULATION HAZARD Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of 3 ft or 1m away). NEVER place the camera or adapter cord inside the crib or child sleeping area. Do not use extension cords. This product is NOT intended to replace proper supervision of children.
3 USB battery not included, requires at least 2 Amp output.

Product Views:

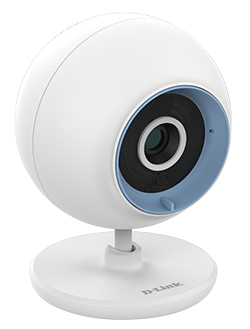

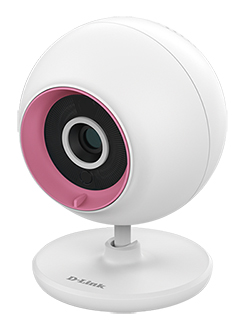

D-Link DCS-800L Side Left Pink View D-Link DCS-800L Side Right Blue View
D-Link DCS-800L Side Left Pink View D-Link DCS-800L Side Right Blue View

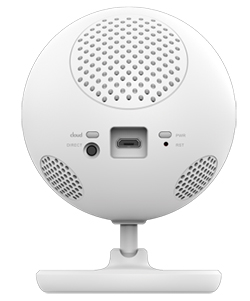

D-Link DCS-800L Back View
D-Link DCS-800L Back View

Documentation:

Download the D-Link DCS-800L Datasheet (PDF).
