D-Link DCS-932L
Cloud Camera 1100; Day/Night Network Camera with mydlink

D-Link DCS-932L

Sorry, this product is no longer available. Please contact us for more information.

Overview:

MyDLink Enabled

Round the clock surveillance

Smaller than your average wallet with Wireless N technology1, the D-Link® Wireless N Day/Night Home Network Camera (DCS-932L), is the perfect camera for your home or small office. The Built-in IR LEDs lets you see what is going on even when there is little or no light. A compact design with integrated antenna, you can place the DCS-932L virtually anywhere, even in the smallest corners of your home. You can easily view what is going on at home without having to be there via the Internet, or from the mydlinkTM app. Set up a camera near your entryway or in any room to monitor what is happening around the house, day & night. The Wireless N Day/Night Home Network Camera is ideal for every household.

Benefits of mydlink™

mydlink™ products are created for people who long to embrace a world connected through the Internet, but are afraid they lack the technical expertise to do so. mydlink removes the learning curve that is typically associated with today’s high-tech devices because they are truly plug-and-play with easy configuration. mydlink provides you easy and straight forward access to your digital life all from our intuitive, convenient website (www.mydlink.com). mydlink makes it easy to get the most from your digital lifestyle without the learning curve.

Convenient Access, Anywhere, Anytime

As a mydlink-enabled device, you can access the DCS-932L anytime, anywhere you have Internet access. Get peace of mind by keeping an eye on your kids, pets, home or office from almost anywhere by simply logging on to the mydlink website and selecting your camera or download the free mydlinktm app from the App store7 or AndroidTM market7 for on-the-go live video viewing. Since the DCS-932L comes with a built-in microphone, you can see and hear for yourself that everything is well at home.

Camera Management

For advanced users that want more out of their camera, the DCS-932L also comes with D-Link’s D-ViewCam™ management software. D-ViewCam comes with a host of features including the ability to record directly from the camera to a local hard drive, trigger motion detection, set recording schedules, set e-mail alert notifications, and even support for up to 32 cameras. D-ViewCam also allows you to upload a floor plan of your home or small business and create a realistic layout of where your cameras are located, providing you with better access to your camera. For even greater recording flexibility, you can record video directly to a Network Attached Storage (NAS) device, eliminating the need for a dedicated computer to store video.

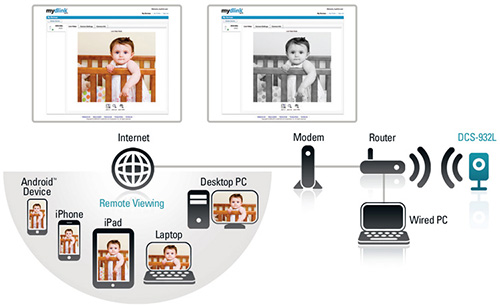

D-Link DCS-932L Diagram

Technical Specifications:

D-Link DCS-932L Specifications
Network Protocol
  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-link)
  • DNS Client
  • DDNS Client (Dynds and D-link)
  • SMTP Client
  • FTP Client
  • HTTP server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD
Built-in Network Interface
  • 10/100Base-TX Fast Ethernet
  • 802.11b/g/n WLAN
Wireless Connectivity 802.11b/g/n Wireless with WEP/WPA/WPA2 security
Wireless Transmit Output Power 16 dbm for 11b, 12 dbm for 11g,12 dbm for 11n (typical)
SDRAM 32 MB
Flash Memory 4 MB
Reset Button Reset to factory default
Video Codecs
  • MJPEG
  • JPEG for still images
Video Features
  • Adjustable image size and quality
  • Time stamp and text overlay
  • Flip and Mirror
Resolution
  • 640 x 480 at up to 20 fps
  • 320 x 240 at up to 30 fps
  • 160 x 120 at up to 30 fps
Lens Focal length: 5.01 mm, F2.8
Sensor
  • VGA 1/5 inch CMOS Sensor
  • Removable IR-Cut filter: auto/schedule/manual
IR LED 5 meter illumination distance
Minimum Illumination
  • Color: 1 Lux @ F2.8 + B/W: 0 Lux with IR LED on
View Angle
  • Horizontal: 45.3°
  • Vertical: 34.5°
  • Diagonal: 54.9°
Digital Zoom Up to 4x
3A Control
  • AGC (Auto Gain Control)
  • AWB (Auto White Balance)
  • AES (Auto Electronic Shutter)
Power
  • Input: 100-249 V AC, 50/60Hz
  • Output: 5 V DC, 1.2A
  • External AC-to-DC switching power adapter
Max Power Consumption 2 W
Operation Temperature 32°F to 140°F (0°C to 40°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Humidity 20-80% RH Non-Condensing
Dimensions (W x D x H) Including the bracket and stand: 2.6" x 2.6" x 5" (65.8mm x 65mm x 126mm)
Camera only 1.1" x 2.4" x 3.8" (27.2mm x 60mm x 96mm)
Certifications
  • FCC Class B
  • IC
  • C-Tick
  • CE
Support 24/7 Basic Installation Support1
Warranty 1-Year Limited2
Minimum System Requirements
  • Wired (10/100 Fast Ethernet) or Wireless (802.11g or802.11n) Network
    (Wireless N network recommended for optimum wireless performance)
  • Computer with:
    • 1.3 GHz Processor
    • 128MB Memory
    • Windows® 74, Windows Vista4, and Windows® XP SP24 or Mac OS X (10.5 and above, Intel Processor)
    • Internet Explorer®, Mozilla® Firefox® v3.0, Google® Chrome v2, or Safari® v4
    • CD-ROM Drive
For Internet Access
  • Cable or DSL Modem
  • Subscription with an Internet Service Provider (ISP)
Package Contents
  • Wireless N Day/Night Network Camera
  • CAT5 Ethernet Cable
  • Power Adapter
  • Camera Base and Mounting Kit
  • Quick Installation Guide
  • CD-ROM with:
    • D-View Cam Software
    • Product Documentation
1 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
2 1-Year Limited Warranty available only in the USA and Canada.

Product Views:

D-Link DCS-932L Back View D-Link DCS-932L Right View
D-Link DCS-932L Back View D-Link DCS-932L Right View

Documentation:

Download the D-Link DCS-932L Datasheet (PDF).
