D-Link DCS-936L
HD Wi-Fi Camera
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The HD Wi-Fi Camera (DCS-936L) provides crisp HD 720p video, making it easy and convenient to watch over your home no matter where you are. Place it anywhere and stay informed with automatic push alert notifications whenever sound or motion is detected. The DCS-936L is a standalone surveillance camera that requires no special hardware or software, and can run independently even without a PC. 16 feet of night vision allows you to see in total darkness and with the microSDXC card slot you can record video footage up to 128 GB directly from the camera so you never miss a moment. Stream live HD 720p video to your smartphone or tablet with the mydlink app for remote monitoring.
Easy to Setup, Even Easier to Use
The HD Wi-Fi Camera features a Wi-Fi signal locator LED which helps you determine
optimum Wi-Fi connection when deciding where to place your camera. Once set up,
the DCS-936L delivers the confidence of HD 720p video clarity, ensuring rich detail
and crisp image quality for your surveillance streaming and recording. Record footage
directly to a microSDXC card up to 128 GB for hassle-free recording and playback3
or
simply add a mydlink Camera Recorder (DNR-202L) to locally record up to 4 D-Link
Wi-Fi Cameras for a scalable alternative for recording and storing video.
Convenient Access Anytime, Anywhere with mydlink®
Access your camera through the free mydlink mobile app or website to view and
manage your camera through your tablet, mobile phone, laptop or desktop, no
matter where you are.
Technical Specifications
Camera Hardware Profile
- 1/4" 1-megapixel progressive CMOS sensor
- 16 ft night vision with infrared LEDs
- Minimum illumination: 0 lux with IR LEDs on
- Built-in Infrared-Cut Removable (ICR) filter module
- Built-in microphone
- 4x digital zoom
- Focal length: 2.45 mm
- Aperture: F2.4
- Angle of view:
- (H) 100°
- (V) 54°
- (D) 120°
External Device Interfaces
- Power LED
- Reset button
- WPS button
- microUSB power connector
- microSD/SDXC card slot
- Wi-Fi signal locator LED
Image Features
- Adjustable image size, quality, frame rate and bit rate
- Adjustable brightness, saturation, contrast, sharpness and hue
- Configurable motion and sound detection
- Time stamp and text overlays
- Flip & mirror
Video Compression
- Simultaneous H.264/MJPEG format video compression
- JPEG for still images
Video Resolution
- 1280 x 720 at up to 30 fps
- 640 x 352 up to 30 fps
- 320 x 176 up to 30 fps
Audio Support
- PCM
- ADPCM
Mobile Support
- mydlink Lite app available for iOS, Android devices and Windows Phones
- mydlink + app available for iOS and Android devices
Network
Network Protocols
- IPv4, IPv6, ARP, TCP, UDP, ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client
- DDNS Client (D-Link)
- SMTP Client
- HTTP Server
- PPPoE
- UPnP, UPnP port forwarding
- RTP, RTSP
- HTTPs for configuration
- Bonjour
Security
- Administrator and user group protection
- Password authentication
- HTTP and RTSP digest encryption
Physical
Dimensions (W x D x H)
- 1.89 x 2.56 x 3.17 inches
Weight
- 0.31 lbs (camera only)
Power Input
- 5 V DC / 1.2 A, 50/60 Hz through power adapter
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
- Operating: 20% to 85% non-condensing
- Storage: 20% to 85% non-condensing
Certifications
- CE
- CE LVD
- FCC Class B
- ICES
- C-Tick
Product Views:
 |
 |

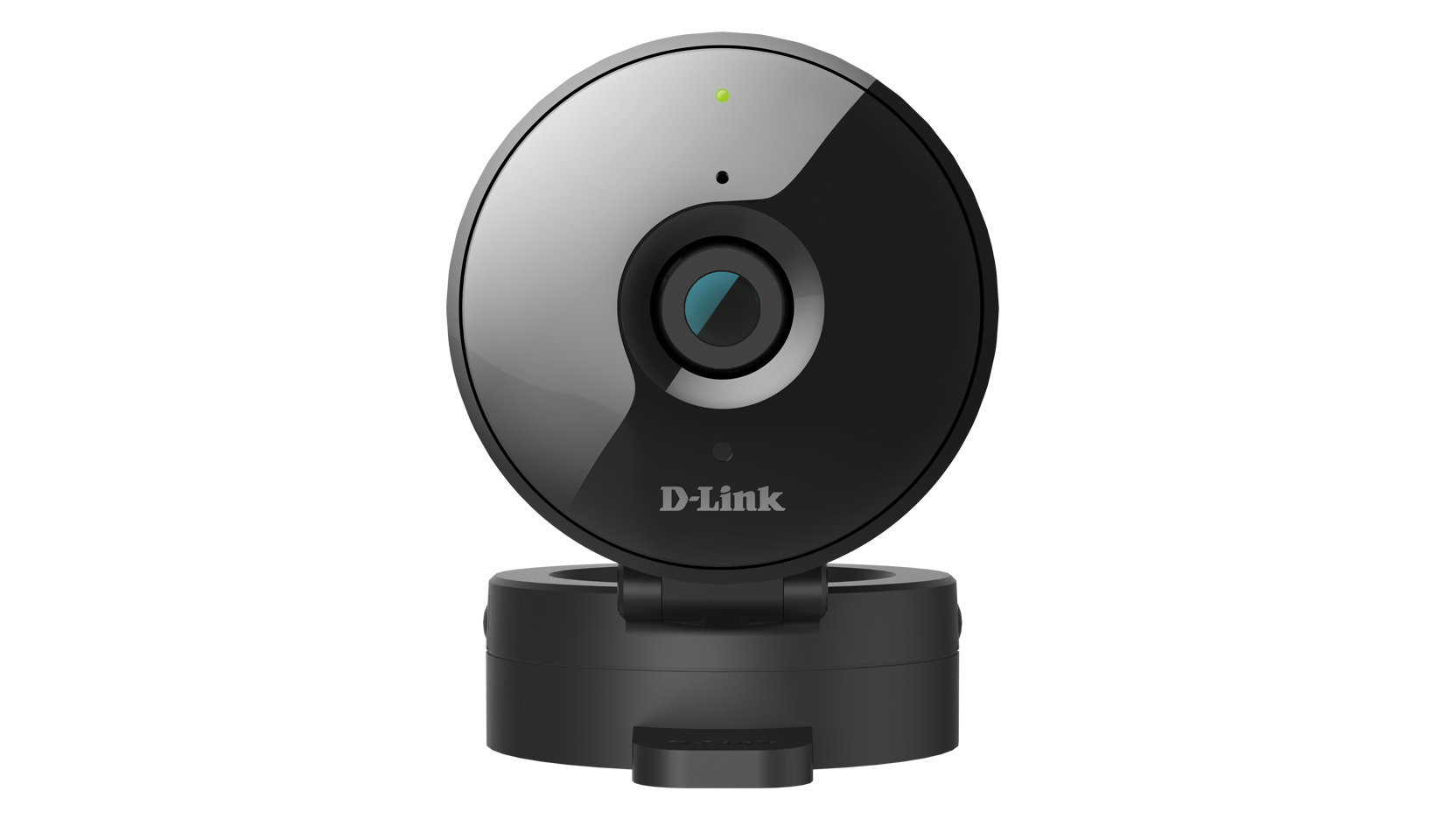

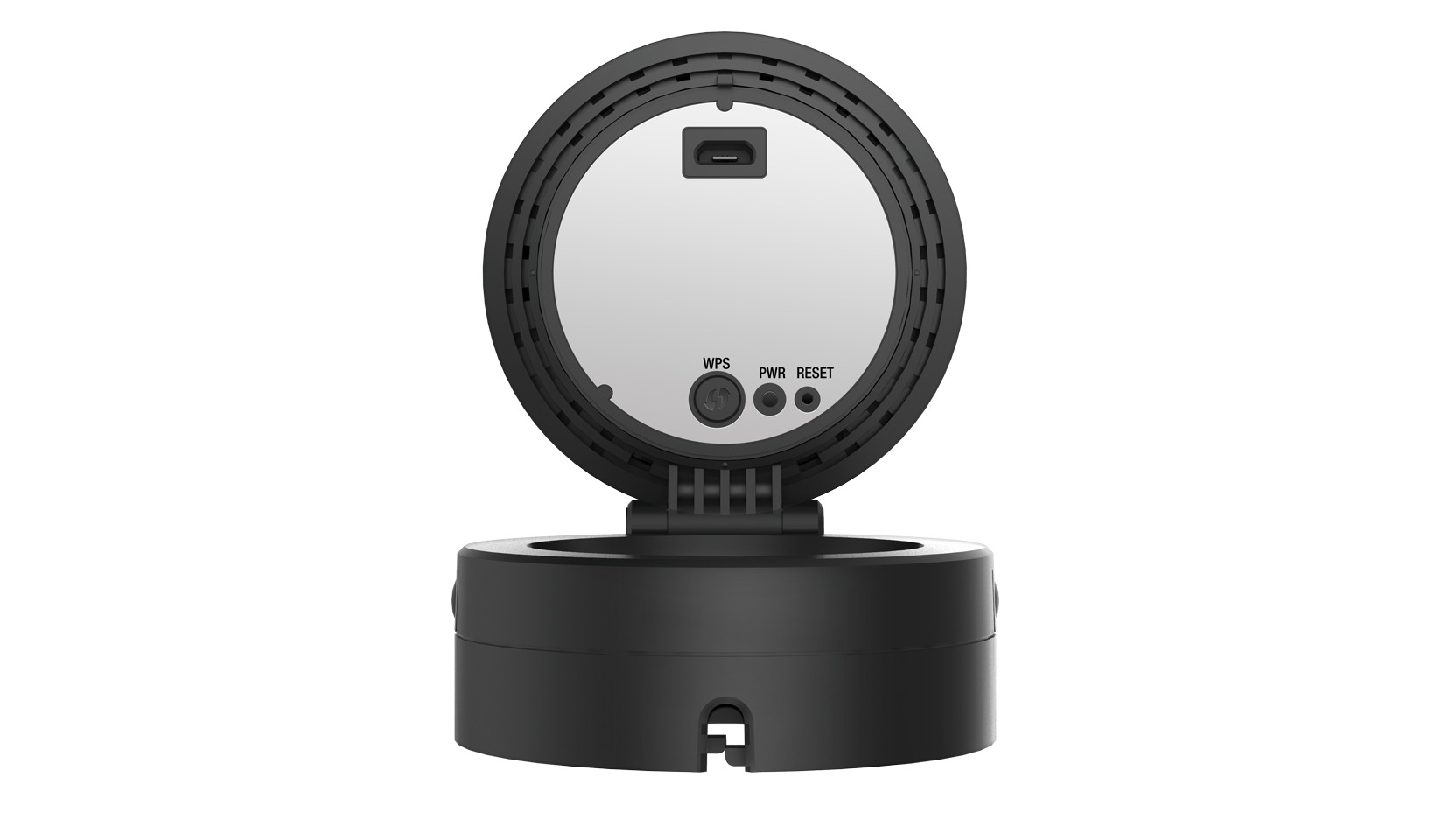

| D-Link DCS-936L Front View | D-Link DCS-936L Back View |
 |
 |

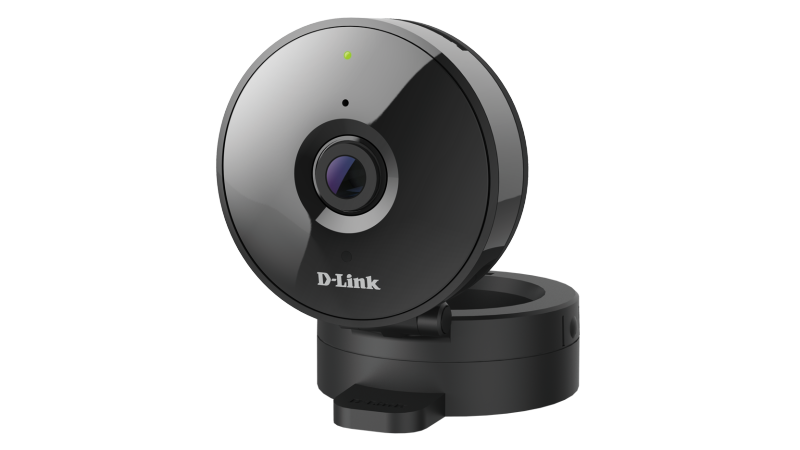

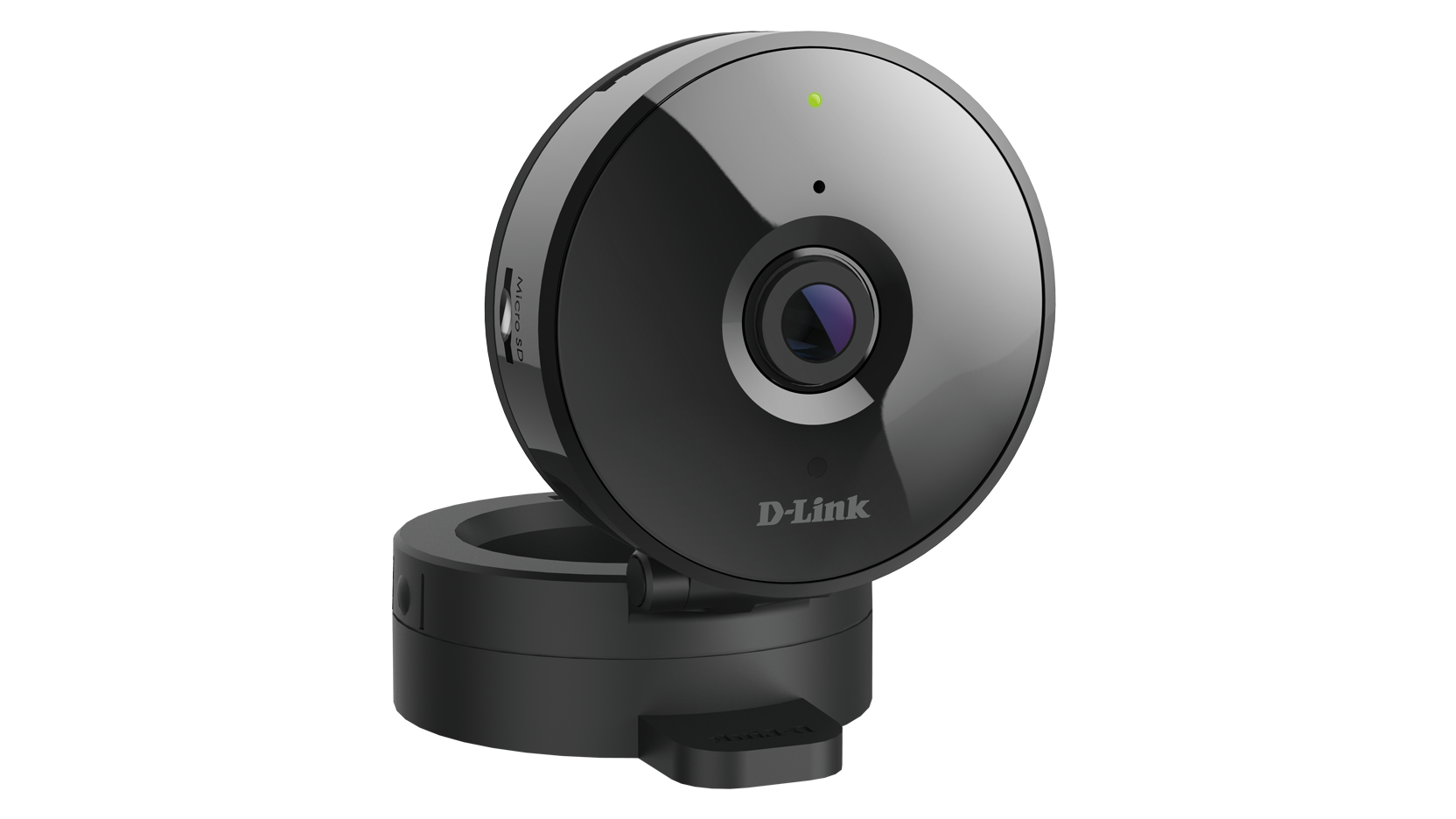

| D-Link DCS-936L Right View | D-Link DCS-936L Left View |
Documentation:
Download the D-Link DCS-936L Datasheet (PDF).
