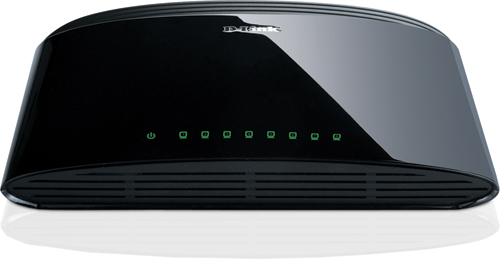

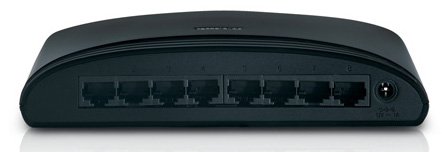

D-Link DES-1008E
8-Port 10/100 Desktop Switch

DES-1008E

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

Think Green
The DES-1008E eight port Fast Ethernet Switch are part of D-Link’s new series of home devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Conserves Energy
The DES-1008E helps conserve energy automatically. The switches save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly
The DES-1008E eight port Fast Ethernet Switches were designed with the environment in mind, and are both compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switches are also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

LimitedLifetimeWarranty
To further its commitment to product quality, D-Link offers a Limited Lifetime Warranty on the DES-1005E. If it breaks, have the peace of mind that D-Link will repair or replace the product for free.¹

Features

Built-in D-Link Green Technology
Five or Eight 10/100 Mbps ports
1.0/1.6 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
RoHS compliant
Plug-and-play installation
Limited Lifetime Warranty¹

Package Contents

8 port Fast Ethernet Switch (DES-1008E)
Power Adapter
Wall Mount Kit (DES-1008E only)
Quick Install Guide

MinimumSystemRequirements

Devices Supporting 802.3 Ethernet or 802.u Faster Ethernet
Cat5 or better Ethernet Cable
RJ-45 Port for Each Device
Network Interface Card for each computer

¹ Limited Lifetime Warranty available only in the USA. For complete details, please check the product warranty information at http://support.dlink.com/products/warranty/Limited_Lifetime. pdf.

Technical Specifications:

D-Link DES-1005E Specifications
	DES-1005E	DES-1008E
Switching Fabric	1Gbps	1.6Gbps
Standards	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)	ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol	CSMA/CD
Data Transfer Rates	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Topology	Star
Network Cables	10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	Per port: Link/Activity/Speed Per device: Power
Transmission Method	Store-and-forward
MAC Address Table	2K
MAC Address Learning	Automatic update
Packet Filtering/Forwarding Rates	Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port
RAM Buffer	96 KB per device
General Specifications
DC Input	External 5 V/.55 A Level “V” Power Adapter
Power Consumption	DC input: .9 watts AC input: 1.6 watts	DC input: 1.78 watts AC input: 2.19 watts
MTBF	1,623,329 hours	2,137,319 hours
Operating Temperature	32 to 104 ˚F (0 to 40 ˚C)
Storage Temperature	14 to 158 ˚F (-10 to 70 ˚C)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
Dimensions	1.07 x 4.09 x 2.34 in (27.2 x 104 x 59.5 mm)	1.37 x 5.83 x 3.33 in (34.7 x 148 x 84.6 mm)
Weight	1.90 ounces (53.80 grams)	4.94 ounces (140 grams)
Certifications	FCC Class B CE Class B CB
Warranty
Warranty	Limited Lifetime Warranty¹
