D-Link DES-1008P+
8-Port 10/100 Unmanaged Desktop or Rackmount PoE+ Switch
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The D-Link DES-1008P+ 8-Port 10/100 Unmanaged Desktop or Rackmount PoE+ Switch enables IT managers and Security System Integrators to easily connect and supply power to devices such as IP cameras, IP phones and wireless Access Points (APs), while adding more Ethernet devices like computers, printers, and Network Video Recorders (NVRs) onto a network. Built with demanding applications in mind, this switch supports a generous PoE budget and provides ample PoE power to any device that needs it.
Power over Ethernet
Compliant with IEEE 802.3af and 802.3at, the DES-1008P+ supports up to 30W of power output on any particular port, providing flexibility in power allocation for a variety of powered devices, including new 802.11ac wireless access points that require 802.3at power for full functionality, or outdoor IP cameras with heaters and blowers. The DES-1008P+ supports 140W total PoE power budget – up to 70W on ports 1 through 4, and an additional 70W on ports 5 through 8. Diagnostic LEDs indicate when the PoE budget has been reached.
Easy to Install and Use
The DES-1008P+ requires no configuration or software, making installation simple and hasslefree. With Auto-MDI/MDI-X support, there is no need for crossover cables when connecting to another switch or to a computer. Additionally, the DES-1008P+ will automatically sense if the connected network devices are running at 10Mbps or 100Mbps and adjust accordingly. The DES-1008P+ also features diagnostic LEDs, which display link status and activity, allowing quick detection and correction of problems on the network. Combining the convenience of PoE, superior performance, and ease of use, this 8-Port PoE switch is the ideal choice for adding PoE devices to any network.
Flexible Operation
The DES-1008P+ can be mounted on a desktop or in a standard 19” rack, making it suitable for a variety of I.T. and Surveillance applications. It has no fans, comes in a rugged metal housing, and utilizes an internal 100 – 240 VAC power supply.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DES-1008P+ to further its commitment to product quality and long-term customer confidence.
Features
High-Speed Networking
- Eight 10/100 Mbps Fast Ethernet Ports
- Full/half-duplex for Ethernet/Fast Ethernet speeds
Power over Ethernet
- IEEE 802.3at compliant PoE on all ports
- 140W PoE power budget
Reliability
- IEEE 802.3x flow control
- Store-and-forward switching scheme
- Fanless – silent operation
- RoHS compliant
Easy Setup
- Plug-and-play installation
- Auto MDI/DDIX crossover for all ports
Technical Specifications:
| D-Link DES-1008P Specifications | |
|---|---|
| General | |
| Standards |
|
| Ports | 8 10/100 Mbps PoE ports |
| Switching Fabric | 1.6 Gbps switching fabric |
| Data Transfer Rates |
|
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
| Network Cables |
|
| LED Indicators |
|
| Transmission Method | Store-and-forward |
| MAC Address Table | 2K entries per device |
| Packet Filtering/Forwarding Rates |
|
| RAM Buffer | 96 KB per device |
| Physical & Environmental | |
| Dimensions | 11.02” x 7.05” x 1.75” (280mm x 179mm x 44.5mm) |
| Heat Dissipation |
|
| Power Input | 100 to 240 VAC, 50/60 Hz, Internal Universal Power Supply |
| Power Consumption |
|
| Weight | 3.6 lbs (1.65 Kg) |
| Temperature |
|
| Humidity |
|
| Certifications |
|
| Power over Ethernet | |
| PoE capable ports | Ports 1 - 8 |
| PoE standard | IEEE 802.3af and IEEE 802.3at |
| PoE power budget |
|
| Warranty Information | |
| Warranty | Limited Lifetime1 |
1 Limited Lifetime Warranty available only in U.S.A.
Product View:
 |
 |

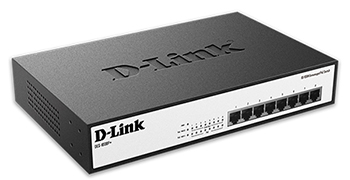

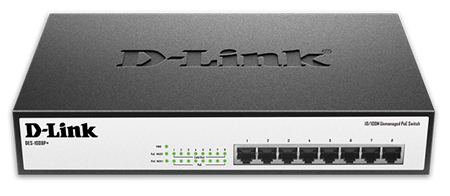

| D-Link DES-1008P+ Side View | D-Link DES-1008P+ Back View |

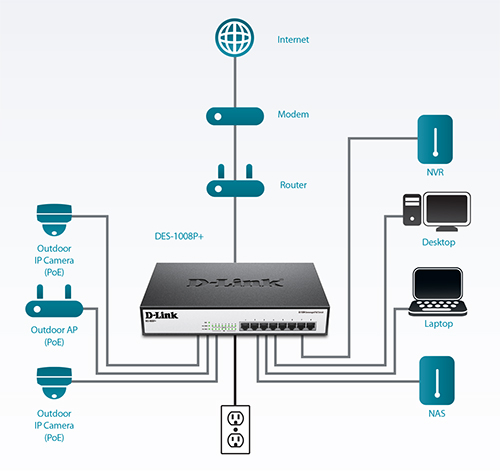

Diagram:
Sample Configuration
Documentation:
Download the D-Link DES-1008P+ Datasheet (PDF).
