D-Link DFE-530TX+
10/100 Fast Ethernet Desktop PCI Adapter

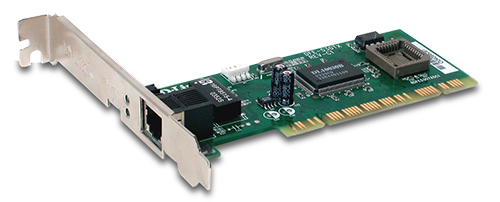

D-Link DFE-530TX+ 10/100 Fast Ethernet Desktop PCI Adapter

Sorry, this product is no longer available, replace by the DGE-530T. Please contact us for more information.

Overview:

Reliable Wired Networking

The D-Link® 10/100 Fast Ethernet Desktop PCI Adapter (DFE-530TX+) delivers reliable wired network connectivity for your desktop PC. Access an available high-speed Internet connection through your wired network using this Fast Ethernet Desktop Adapter and surf the web, check e-mail, and share documents, music, and photos.

Advanced Features

This Fast Ethernet Desktop Adapter includes advanced features such as Wake-on-LAN and IEEE 802.3x support. Computers and operating systems that support Advanced Configuration and Power Interface (ACPI) can remotely wake your PC from anywhere on the network with the Wake-on-LAN feature. With support for 802.3x flow control, data is received and transmitted smoothly to and from the network.

Easy To Install And Use

This Fast Ethernet Desktop Adapter is automatically detected by the Windows® OS during installation, simplifying the setup process. It supports IEEE 802.3 and 802.3u, ensuring compatibility with 10BASE-T and 100BASE-TX networks. This Fast Ethernet Desktop Adapter utilizes auto-negotiation to automatically adjust to the highest supported transfer rate (up to 200Mbps in full duplex mode).

The D-Link 10/100 Fast Ethernet Desktop PCI Adapter (DFE-530TX+) is a simple, cost-effective solution for desktop computers, making it the ideal choice for wired home networking applications.

Access The Internet
Connect to a network and surf the Web from your desktop PC

Auto Detection
Windows® automatically detects the adapter for easy installation

Reliable Networking
Up and running in minutes

Technical Specifications:

D-Link DFE-530TX+ Specifications
Standards
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay Auto-Negotiation
  • IEEE 802.3x Full Duplex Flow Control Support
Network Data Transfer Rate
  • Ethernet: 10Mbps (Half-duplex)
  • Ethernet: 20Mbps (Full-duplex)
  • Fast Ethernet: 100Mbps (Half-duplex)
  • Fast Ethernet: 200Mbps (Full-duplex)
Features
  • PCI Local Bus Master 2.1/2.2 Support
  • Plug-and-Play Installation
  • Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN
  • Compliant to PC 99 Standard (Magic Packet, LinkChg and Microsoft wake-up frame)
  • Independent 2Kb receive and transmit FIFOs
Protocol CSMA/CD
Network Media
  • Ethernet: UTP Cat3, 4, 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
  • Fast Ethernet: UTP Cat5, EIA/TIA-568 100-ohm screened twisted-pair (STP)
LED
  • Link
  • Activity
Certifications
  • FCC
  • CE Class B
  • Class B
  • VCCI-B
Operating Temperature 14° to 131°F (-10° to 55°C)
Operating Humidity 90% Maximum (non-condensing)
Dimensions
  • Item (WxDxH): 4.9” x 4.8” x 0.5” (124mm x 122mm x 13mm)
  • Packaging (WxDxH): 9.3” x 9.7” x 1.5” (236mm x 246mm x 38mm)
Weight
  • Item: 0.3 lbs (.14kg)
  • Packaging: 0.5 lbs (.23kg)
Warranty 1-Year Limited1
Minimum System Requirements
  • Computer with:
    • Windows® 72,3, Windows Server® 20082,3, Windows Vista®2,3, Windows® XP SP22,3, Windows 2000 SP42,3, or Mac OS® X (v10.2/v10.3)4
  • CD-ROM Drive
  • 20MB Hard Disk Space
  • 32-Bit PCI Slot
Package Contents
  • 10/100Mbps Fast Ethernet Desktop PCI Adapter
  • Wake-on-LAN Cable
  • Standard & Low Profile Mounting Brackets
  • Quick Installation Guide
  • CD-ROM5 with
    • Installation Wizard
    • Product Documentation
1 1-Year Limited Warranty available only in the USA and Canada.
2 Computer must adhere to Microsoft’s recommended System Requirements. Please contact Microsoft for details.
3 Visit http://support.dlink.com for newest releases of drivers.
4 The software included with this product is not Mac-compatible.
5 Latest software and documentation are available at http://support.dlink.com.

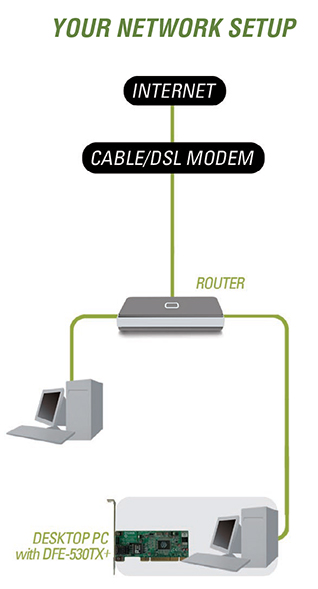

Diagram:

What this product does
Connect to your wired home network by adding a D-Link 10/100 Fast Ethernet Desktop PCI Adapter to your desktop computer. Once connected, you can share an available high-speed Internet connection while also getting access to shared documents, music, and photos from other computers on your network.

DFE-530TX+ Diagram

Documentation:

Download the D-Link DFE-530TX+ Datasheet (PDF).
