D-Link DGS-1008G
8-Port Gigabit Desktop Switch
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The D-Link 8-Port Gigabit Switch transfers data at blazing gigabit speeds, boosting your network performance when running bandwidth-intensive applications or gaming. Environmentally friendly, the 8-Port Gigabit Switch adjusts power usage and reduces energy consumption without affecting operational performance.
Connect All of Your Devices with Gigabit Speed
Expand your wired home network with the D-Link® 8-Port Gigabit Desktop Switch (DGS-1008G). By connecting the DGS-1008G to your router, you can add up to seven more devices to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.
Compact Design

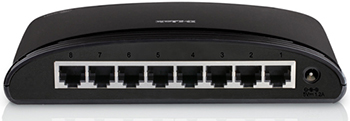

This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.
Effortless High Speed Networking
Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The DGS-1008G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.
Plug and Play Installation
TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
Conserves Energy
The DGS-1008G 8-port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link activity, allowing the switch to save energy by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths and adjust power usage accordingly, helping you save energy without effecting networking performance.
IEEE 802.1P QoS
QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.
* Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic and network overhead, lower actual data throughtput rate.
Technical Specifications:
D-Link DGS-1008G Specifications | |
---|---|
Key Features |
|
Standards |
|
Protocol | CSMA/CD |
Data Transfer Rates |
|
Topology | Star |
Network Cables |
|
Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
Led Indicators |
|
Transmission Method | Store-and-forward |
Mac Address Table | 4K entries per device |
Mac Address Learning | Automatic update |
Packet Filtering/Forwarding Rates |
|
Ram Buffer | 128 KBytes per device |
DC Input | External 5V/1.2A Power Adapter |
Power Consumption |
|
Heat Dissipation |
|
MTBF | 1,150,498 hours |
Temperature |
|
Humidity |
|
Device Dimensions (W x D x H) | 6.5 x 4.5 x 1.4 inches (164.5 x 112.4 x 35.0 mm) |
Certifications |
|
Warranty | Limited Lifetime* |
* Limited Lifetime Warranty available only in the USA and Canada if purchased on or after June 1, 2010.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

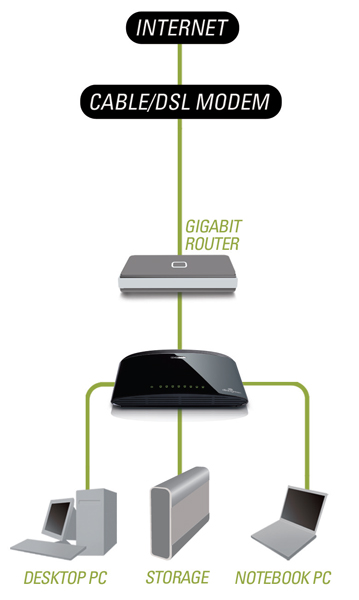

Diagram:
Documentation:
Download the D-Link DGS-1008G Datasheet (PDF).
