D-Link DGS-3100-24P
24-Port Gigabit L2 Stackable Managed PoE Switch

D-Link DGS-3100-24P

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The DGS-3100 series switches are managed Layer 2 Gigabit stackable switches designed as feature-rich, cost-effective devices in the entry-level network management category. These switches provide wide-ranging port densities and up to 20Gbps physical stacking. Outstanding features include scalable expansion, SFP fibre links, comprehensive network security, granular bandwidth control and extensive network management. Small to medium businesses (SMBs) looking for a flexible, advanced and affordable solution can deploy these switches to set up Gigabit connections to their desktops or build up a company-wide network backbone.

Physical Stacking

Each of the DGS-3100 series switches comes with 2 dedicated HDMI stacking ports, each providing 5Gbps stacking bandwidth (up to 20Gbps for the overall system in full-duplex mode, bi-directional). Up to 6 units, 288 10/100/1000Mbps ports can be stacked up in a linear or fault-tolerant Ring topology. A stack can consist of 10/100/1000Mbps switches, 10/100/1000Mbps PoE switches, or a combination of both types, with up to 96 SFP fibre links. Units can be gradually added to the stack to accommodate growth, while expansion beyond a single stack is possible using Gigabit port trunks between stacks, or from stack to network backbone and server paths.

Security & Availability

The DGS-3100 stack includes many security features including Access Control List (ACL), 802.1X Port-Based/Host-Based Access Control and 802.1X Guest VLAN to make network access available to authorized users. To prevent malicious attacks and virus/worm affection from overwhelming the switch with unnecessary workload, the DGS-3100 stack provides the D-Link Safeguard Engine function to increase the switch’s reliability and availability.

Resilience/Performance Enhancement

To enhance network resilience, the DGS-3100 stack provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server. For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IP, VLAN ID and L4 protocol types, enabling Internet voice, video and streaming media applications to run smoothly.

Traffic Monitoring/Bandwidth Control

Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define bandwidth limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping and MLD snooping to control multicast transmission, and port mirroring to facilitate diagnostics.

Management

The DGS-3100 stack supports standard-based management protocols such as SNMP, RMON, Telnet, Web GUI and SSH/SSL security authentication. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server, and individual switches can boot their IP from the server and load in the pre-set configurations

Features:

Flexible High Port Densities Choices

  • 8, 24 or 48 10/100/1000BASE-T Ports
  • 4 Combo SFP or 16 Dedicated SFP for Fiber Gigabit and 100BASE-FX Links
  • 802.3af Power Over Ethernet Support1

High Bandwidth Physical Stacking

  • 2 HDMI Ports Per Switch
  • Up to 20 Gbps Full-Duplex Stacking Bandwidth
  • Up to 6 Units (288 Gigabit Ports) Per Stack
  • Linear or Fault Tolerant Ring Stacking Topology

Security

  • Port Security
  • ACL
  • ARP Spoofing Prevention
  • 802.1X Port-based/MAC-based Access Control
  • Guest VLAN
  • Traffic Segmentation
  • 256 VLAN Groups
  • D-Link Safeguard Engine

Traffic Monitoring & Bandwidth Control

  • Port Mirroring
  • Granular Bandwidth Control (Down to 64Kbps Per Port/Flow)
  • Broadcast Storm Control

Resilience/Performance

  • 802.1d, 802.1w and 802.1s Spanning Tree
  • 802.3ad Link Aggregation (Port Trunks)
  • Trunking/Mirroring across Multiple Units Within a Stack
  • Jumbo Frames Up to 10,240 Bytes

Configuration/Management

  • Web-based GUI
  • Command Line Interface (CLI)
  • Telnet Client/Server
  • LLDP
  • SNMP v1, v2c, v3 & RMON v1
  • RADIUS/TACACS+ Authentication for Management Access
  • SSH v1, v2, SSL v3

Technical Specifications:

Software Feature

L2 Features

  • MAC Address Table: 8K
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Jumbo Frames up to 10,240 Bytes
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • Support 256 groups
    • IGMP Snooping Fast Leave
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Support 128 groups
  • Spanning Tree
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
    • Per port/per device BPDU filtering
  • Loopback Detection
  • 802.3ad Link Aggregation
    • Max. 32 Groups per device/8 Ports per group
  • Port Mirroring
    • Support One-to-One
    • Many-to-One

VLAN

  • LAN Group
    • Max. 256 Static VLAN Groups
  • 802.1Q Tagged VLAN
  • GVRP
    • Max. 256 Dynamic VLAN Groups
  • VLAN Trunking

QoS (Quality of Service)

  • 802.1p Class of Service
    • 4 queues
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
    • Strict + WRR
  • CoS based on
    • Switch Port
    • VLAN ID
    • 802.1p Priority Queues
    • MAC Address
    • Ether Type
    • IPv4 Address
    • DSCP
    • TCP/UDP Port
  • Bandwidth Control
    • Port-based (Ingress, min. granularity 3500Kbps; Egress, min. granularity 64Kbps)
    • Flow-based (Ingress, min. granularity 64Kbps)

Access Control List (ACL)

  • Max. 15 profiles
  • Max. 240 rules shared by all profiles
  • ACL Based on
    • 802.1p Priority
    • VLAN ID
    • Ether Type
    • MAC Address
    • IPv4 Address
    • DSCP
    • Protocol Type
    • TCP/UDP Port Number
  • Time-based ACL

Security

  • SSH v2
  • SSL v3
  • ARP Spoofing Prevention
  • Port Security: up to 16 MAC address per port
  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine

AAA

  • Microsoft® NAP
    • Support DHCP NAP
  • 802.1X
    • Port-Based Access Control
  • MAC-Based Access Control (MAC)
  • Guest VLAN
  • Authentication for Management Access Support
    • RADIUS/TACACS+

D-Link Green

  • Power Savings by Link Status
  • Power Savings by Cable Length

Management

  • Web-based GUI
  • Command Line Interface (CLI)
  • Telnet Server/Client
  • TFTP Client
  • LLDP
  • DHCP Relay Option 82
  • SNMP v1/v2c/v3
  • SNMP Trap
  • System Log
  • RMON v1
    • Support 1,2,3,9 Groups
  • BootP/DHCP Client
  • DHCP Auto-Configuration
  • Dual Image
  • CPU Monitoring
  • SNTP
  • Trusted Host
  • Debug Command

MIB/IETF Standard

  • RFC1213 MIB-II
  • RFC1493 Bridge MIB
  • RFC1907 SNMPv2 MIB
  • RFC1757, 2819 RMON MIB
  • RFC1643,2358,2665 Ether-like MIB
  • RFC2674 802.1p MIB
  • RFC2233, 2863 IF MIB
  • RFC2618 RADIUS Authentication Client MIB
  • RFC2925 Ping & Traceroute MIB
  • RFC768 UDP
  • RFC783 TFTP
  • RFC791 IP
  • RFC792 ICMP
  • RFC793 TCP
  • RFC826 ARP
  • RFC854 Telnet
  • RFC951, 1542 BOOTPRFC2068 HTTP
  • RFC2138 RADIUS
  • RFC2139,2866 RADIUS Accounting
  • RFC1492 TACACS
  • RFC1157 SNMPv1
  • RFC1901, 1908 SNMPv2c
  • RFC2570,2575 SNMPv3
  • RFC2598 DiffServ Expedited Forwarding
  • D-Link Private MIB

Interface

Number of 10/100/1000BASE-TX ports

  • DGS-3100-24 - 24 ports
  • DGS-3100-24P - 24 ports

Number of Combo 1000Base-T/SFP ports

  • DGS-3100-24 - 4 ports
  • DGS-3100-24P - 4 ports

RS-232 Console Port

  • Yes

Number of stacking ports

  • 2

Maximum number of units per stack

  • 6

Maximum stacking bandwidth

  • Linear topology - up to 10 Gbps
  • Bi-directional redundant ring topology - up to 20 Gbps

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

  • DGS-3100-24P - 802.3af/24/370W

Performance

Switch Capacity

  • DGS-3100-24 - 68 Gbps
  • DGS-3100-24P - 68 Gbps

64-Byte Packet Forwarding Rate

  • DGS-3100-24 - 50.60 Mpps
  • DGS-3100-24P - 50.60 Mpps

MAC Address Table Size

  • 8K

Packet Buffer

  • 768 KB

Jumbo Frame

  • 10,240 Bytes (Max.)



Physical & Environmental

Power Input

  • 10 to 240 VAC, 50 to 60Hz Internal Universal Power Supply



Power Consumption (maximum)

  • DGS-3100-24 - 37.9 W
  • DGS-3100-24P - 482 W

Dimensions (W x D x H)

  • DGS-3100-24 - 440 x 210 x 44 mm (17.32 x 8.27 x 1.73 inches)
  • DGS-3100-24P - 440 x 310 x 44 mm (17.32 x 12.20 x 1.73 inches)

Weight

  • DGS-3100-24 - 3.04 kg (6.70 pounds)
  • DGS-3100-24P - 5.58 kg (12.30 pounds)

Heat Dissipation

  • DGS-3100-24 - 129.2 BTU/hr
  • DGS-3100-24P - 1643.6 BTU/hr

MTBF

  • DGS-3100-24 - 212,377 hrs
  • DGS-3100-24P - 117,136 hrs

Temperature

  • Operating: 0° to 45°C (32° to 113°F)
  • Storage: -10° to 70°C (-14° to 158°F )

Operating Humidity

  • Operating: 10% ~ 90% Non-condensing
  • Storage: 5% ~ 90% Non-condensing

EMI/EMC

  • FCC Class A, ICES-003 Class A, CE, C-Tick, VCCI Class A

Safety

  • cUL, CB

Product Views:

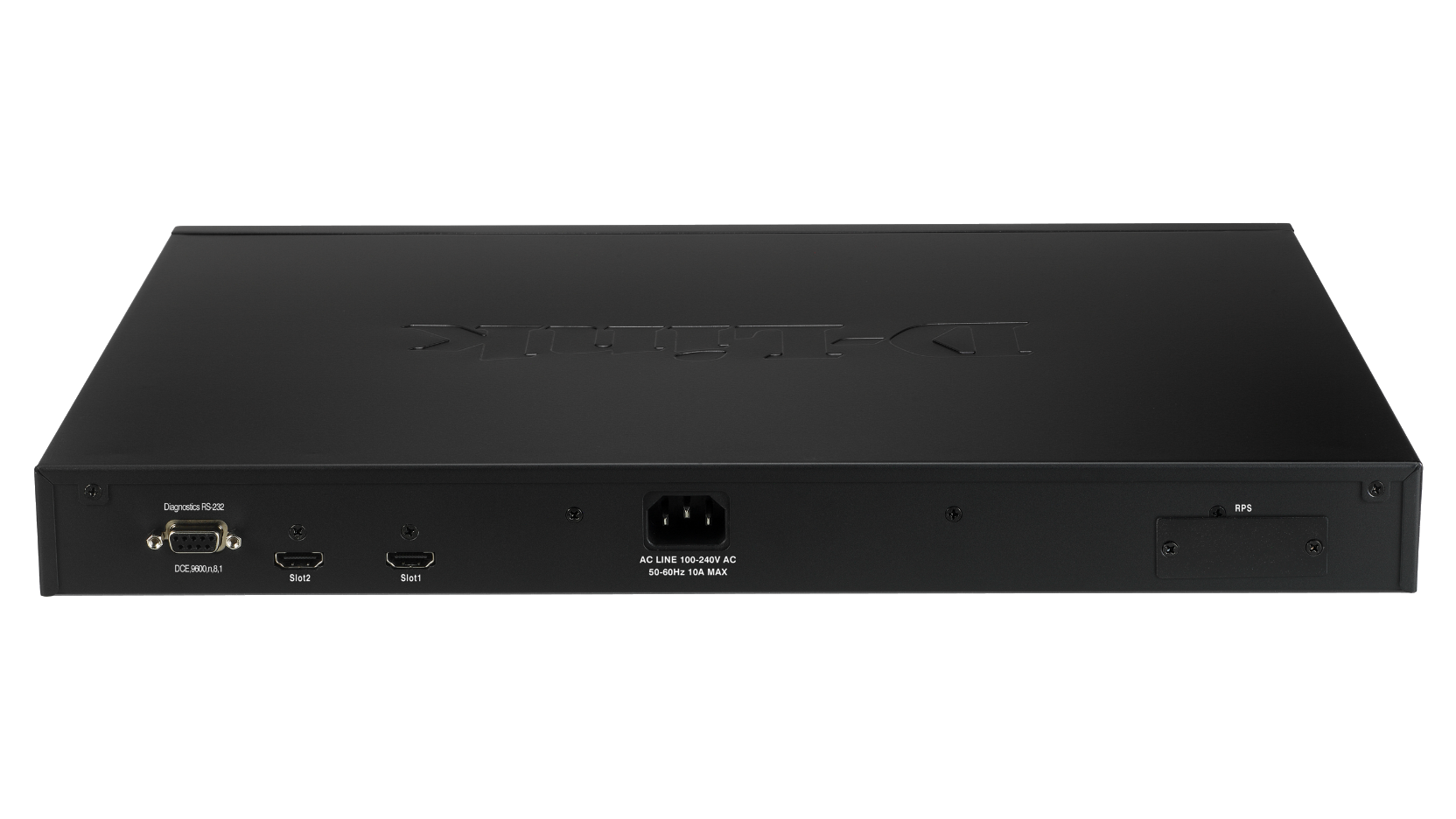

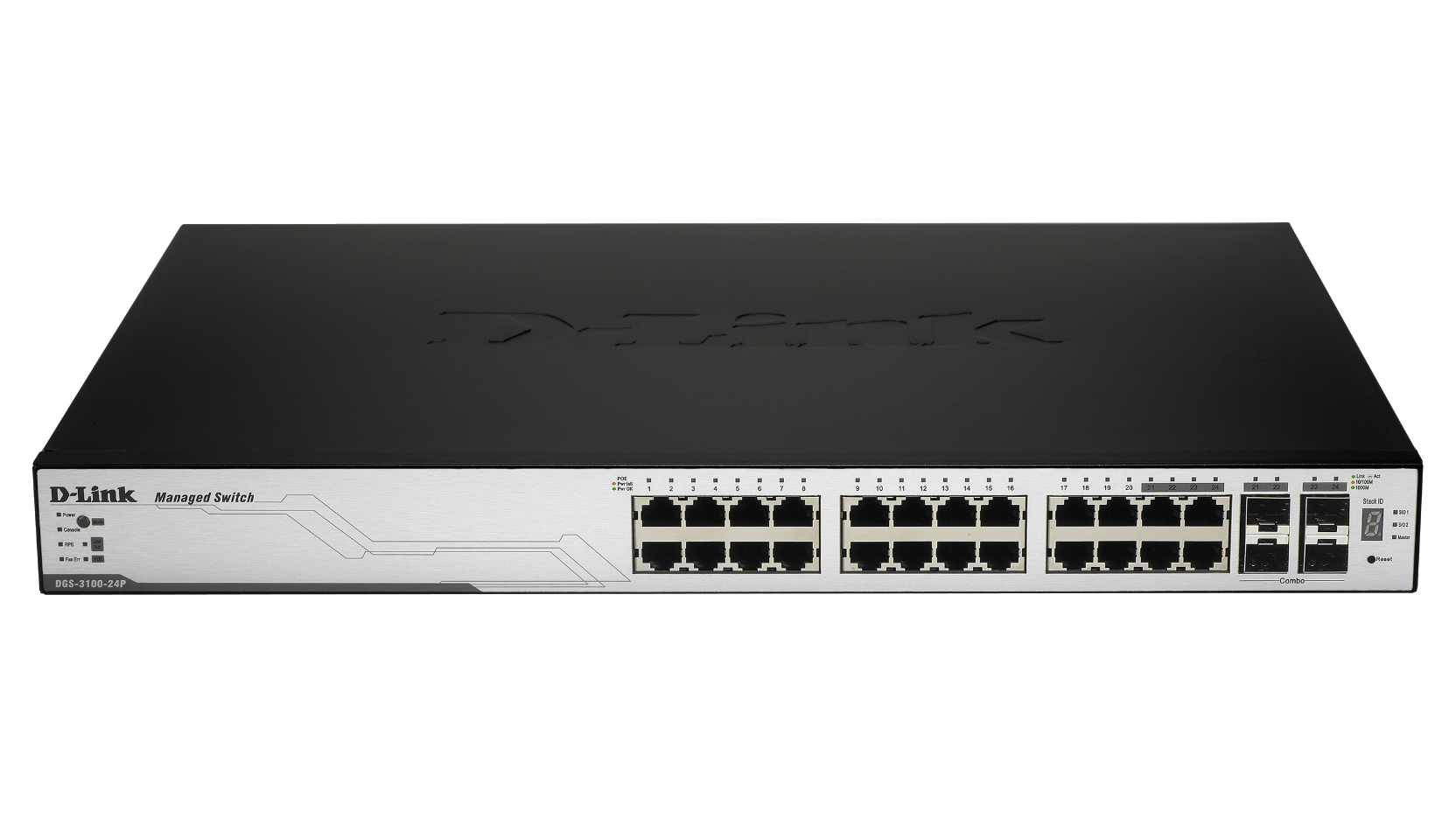

D-Link DGS-3100-24P Front View D-Link DGS-3100-24P Back View
D-Link DGS-3100-24P Front View D-Link DGS-3100-24P Back View

Documentation:

Download the D-Link DGS-3100-24P Datasheet (PDF).
