D-Link DIR-412
Mobile Wireless Router
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
MAXIMUM PORTABILITY
The D-Link® Mobile Wireless Router (DIR-412) allows users to access worldwide mobile broadband1. Simply insert a compatible mobile broadband USB adapter into the DIR-412 to share your mobile broadband Internet connection through a secure, high-speed 802.11n wireless network. A 10/100 Ethernet WAN port allows you to access a DSL/Cable modem as the primary backup connection. Auto-failover ensures an uninterrupted connection by automatically connecting to your mobile broadband network whenever your Ethernet network goes down.
ADVANCED NETWORK SECURITY
The DIR-412 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DIR-412 also utilizes dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.
SIMPLE TO INSTALL AND USE
The Mobile Wireless Router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is available. The DIR-412 can be installed on RVs, trains, or boats, allowing passengers to check e-mail or chat online while commuting.
Features:
Create a reliable mobile high-speed wireless network wherever you go1
Attach your mobile adapter to the router’s USB port to enjoy Internet service with your family or colleagues
Use your mobile connection as a backup for your ADSL/cable Internet service
The DIR-412 allows you to connect a mobile broadband adapter for mobile broadband connectivity. The incoming connection is then shared via a 802.11n wireless network. The standard Ethernet port on the back can be used as a primary or backup connection.
WIRELESS N 150 TECHNOLOGY
Using Wireless N technology, the DIR-412 provides optimal wireless performance and faster file transfers, enabling you to receive better reception across your home. Not only does the D-Link Wireless N 150 technology extend your wireless range, it is also compatible with previous-generation Wireless G devices¹.
MOBILE WIRELESS ROUTER BENEFITS
- Provides high-speed connectivity in areas without conventional 802.11 wireless access
- Compatible with EV-DO/CDMA/HSUPA/HSDPA/UMTS networks
- Supports WAN failover for persistent connections
Technical Specifications:
COMPATIBLE MOBILE NETWORKS
- 1 x EV-DO/CDMA
- HSUPA/HSDPA/UMTS
STANDARDS
- 802.11n
- 802.11g
- 802.11b
- 802.3
- 802.3u
WIRELESS SECURITY
- 64/128-bit WEP (Wired Equivalent Privacy)
- Wi-Fi Protected Access™ (WPA & WPA2)
- WPS (PBC/PIN)
FIREWALL
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- MAC Address Filtering
- Website Filtering
VPN
- L2TP/PPTP/IPSEC VPN Pass-through
- PPTP/L2TP Connection
ANTENNA
- Internal antenna
PORTS
- 1 x Ethernet (RJ-45)
- 1 x USB 2.0
LED STATUS INDICATORS
- Power
- Internet
- Wireless
- Ethernet
- WPS
DIMENSIONS (W x D x H)
- Item: 4.75” x 3.75” x 1” (121mm x 95mm x 25mm)
OPERATING TEMPERATURE
- 32˚ to 104˚F (0˚ to 40˚C)
OPERATING HUMIDITY
- 10% to 95% (Non-condensing)
POWER
- DC 5V/2.5A +/-5%
ADVANCED FEATURES
- Mobile Modem/Ethernet WAN Backup
- Auto WAN Failover
- QoS Management
CERTIFICATIONS
- FCC CLass B
- CE
- RoHS Compliant
WARRANTY
- 1-Year Limited2
Product Views:
 |
|

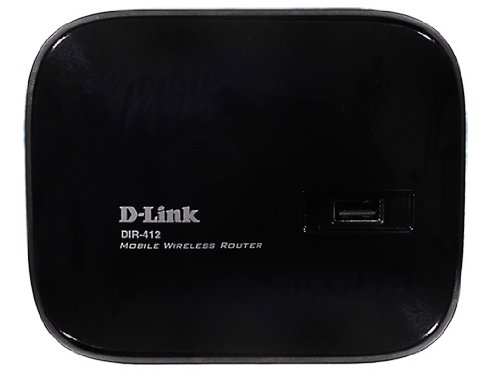

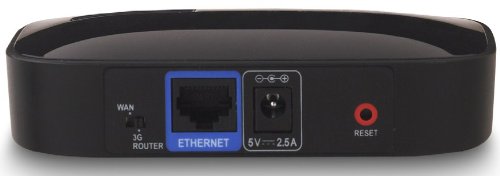

| D-Link DIR-412 Rear View | D-Link DIR-412 Top View |
Documentation:
Download the D-Link DIR-412 Datasheet (PDF).
1 Requires third party mobile Internet access subscription. Check with your service provider for service coverage and applicable fees. D-Link does not guarantee compatibility with all EV-DO/CDMA/HSUPA/HSDPA/UTMS wireless networks or third party Internet PC adapters.
2 1-Year Limited Warranty available only in the USA and Canada.
3 Computer must adhere to Microsoft’s recommended System Requirements.
4 The software included with this product is not Mac-compatible.
5 Latest software and documentation are available at http://support.dlink.com.
