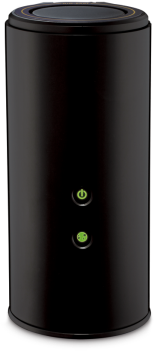

D-Link DIR-868L
Wireless AC1750 Dual Band Gigabit Cloud Router

D-Link DIR-868L

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

mydlink Cloud ServiceWireless AC from D-Link

Upgrade to AC Performance

The D-Link Wireless AC1750 Dual Band Gigabit Cloud Router (DIR-868L) delivers nextgeneration wireless speed and coverage to all your Wi-Fi devices. With wireless dual band speeds of 450 and 1300Mbps, the DIR-868L avoids interference to deliver the fastest wireless speeds, improved coverage and reliable connections. The DIR-868L is ideal for streaming HD video, gaming, connecting multiple devices, and watching shows on your TV – all at the same time. The DIR-868L is also backward-compatible with your existing wireless 802.11a/b/ g/n devices for seamless connectivity. D-Link’s free mobile apps provide easy setup, remote monitoring and access to content from anywhere on your Smartphone or Tablet.

Backward Compatibility

While the DIR-868L delivers AC performance to your home network, it is also backward compatible with all of your existing a/b/g/n devices. This means you can enjoy all the benefits of wireless AC without worrying about annoying compatibility issues. Simply download the QRS Mobile to your mobile device, follow the intuitive setup wizard, and you’ll have your wireless AC home network up and running in minutes.

Dual Band Advantage

The Wireless AC1750 Dual Band Gigabit Cloud Router delivers dual band performance for intelligent, versatile, interference-free bandwidth. Check your email and surf the Internet on the 2.4GHz band; and game, make Skype calls and stream HD movies to multiple devices using the cleaner, interference-free 5GHz band. Whatever you like to do online, dual band has you covered.

Enhanced Coverage

With its built-in high-powered amplifier, you can enjoy wireless coverage throughout your home. Watch videos in an upstairs room, Skype from your home office, or browse and stream from your couch – with the DIR-868L you can connect wherever and however you want.

mydlink Cloud Services

D-Link’s Cloud Routers also provide the added benefit of remote network management and remote file access via mydlink Cloud Services. Take advantage of everything mydlink Cloud has to offer through the free SharePort™ Mobile, QRS Mobile, and mydlink Lite apps and web portal (mydlink.com). With the various free mobile apps that are available for iOS and Android devices, you can:

  • mydlink Lite - Monitor and control your home network from anywhere
  • SharePort™ Mobile - Stream and share files and media over your home network from virtually any connected USB device
  • QRS Mobile - Quickly setup your router from your mobile phone or tablet

Features:

Package Contents

  • Wireless AC1750 Dual Band Gigabit Cloud Router (DIR-868L)
  • Ethernet Cable
  • Power Adapter
  • Quick Install Guide1

Minimum System Requirements

  • Computer with:
    • Windows®2 7, WindowsVista®2 ,Windows® XP SP22, or MacOS® X (v10.4)
    • Internet Explorer® v6, Mozilla® Firefox®, Google Chrome or Safari 4
    • Network Interface Card
  • For Internet Access:
    • Cable or DSL Modem
    • Subscription with an Internet Service Provider(ISP)

Features

  • Remote Access: Remote access for network management in the palm of your hand with the free mydlink app
  • Media Sharing: Wirelessly access your favorite media from a connected USB storage drive with the free SharePort Mobile app
  • Coverage: Designed with a high-powered amplifier to provide wireless coverage to every corner of home.
  • Performance: Performance with wireless AC1750 and four Gigabit Ethernet ports.
  • Easy Setup: Intelligent setup using web browser wizard or with the free Quick Router Setup (QRS) mobile app
1 Latestsoftware and documentation are available at http://support.dlink.com.
2 Computer must adhere to Microsoft’s recommended System Requirements.

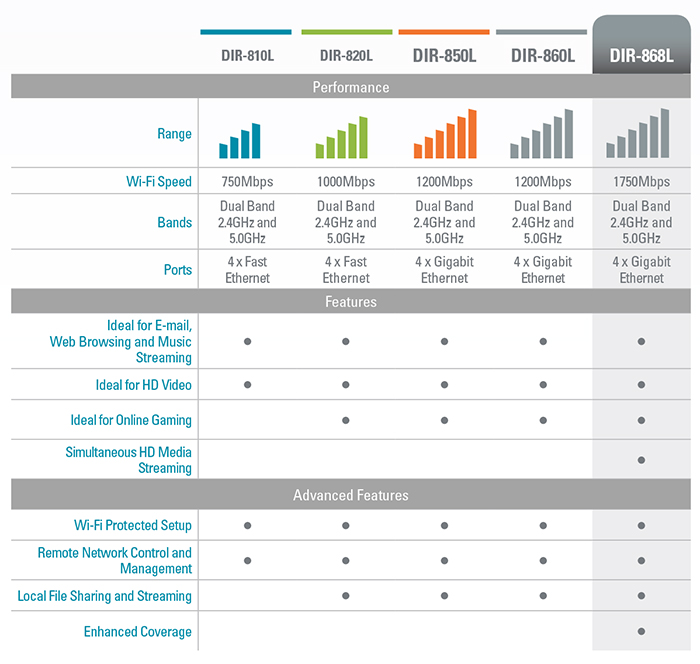

Comparison Chart:

DIR-868L Comparison Chart

Technical Specifications:

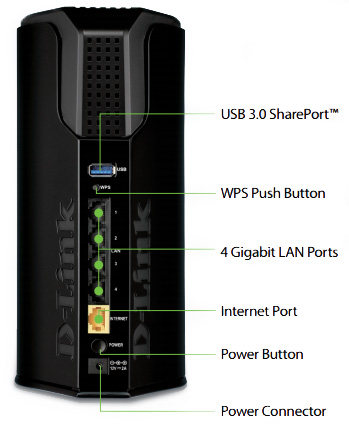

D-Link DIR-868L Back
D-Link DIR-868L Specifications
Standards
  • 2.4GHz
    • IEEE 802.11n
    • IEEE 802.11g
    • IEEE 802.11b
  • 5GHz
    • IEEE 802.11ac (draft)
    • IEEE 802.11n
    • IEEE 802.11a
  • LAN/WAN
    • IEEE 802.3u
    • IEEE 802.3ab
Physical Interfaces
  • 4 Gigabit Ethernet Ports
  • 1 Gigabit WANPort
  • USB 2.0
  • WPS Push Button
  • Reset Button
Antenna Type
  • Internal Antennas
  • AC SmartBeam
Ethernet Interface
  • 4 10/100/1000 Gigabit Ethernet Ports
  • 1 10/100/1000 Gigabit WAN Port
Security
  • Wi-Fi Protected Access (WPA/WPA2)
  • WPS™ (Wi-Fi Protected Setup)
Advanced Firewall Features
  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
LEDs
  • Power/WPS
  • Internet
Power DC 12V/2.5A
Advanced features
  • VPN pass through
  • Parental Control Support
  • Guest Zone Support
  • UPnP™ Support
  • Wi-Fi WMM Quality of Service
  • IPv6
  • SharePort Plus(printersharing)
  • SharePortWeb Access Support
  • UPnP AV Media Server Support(DLNA)
Operating Temperature 30º to 104º F (0º to 40º C)
Operating Humidity 10% to 95% non-condensing
Certifications
  • FCC
  • IC
  • Wi-Fi Certified
  • CE
Mobile Apps
  • SharePort Mobile
  • QRS Mobile
  • mydlink Lite
Dimensions 8.58 x 4.92 x 4.05 inches (218x125x103 mm)
Weight 1.17lbs (530g)
Warranty 1-Year Limited Warranty3
1 Latestsoftware and documentation are available at http://support.dlink.com.
2 Computer must adhere to Microsoft’s recommended System Requirements.
3 Maximum wireless signal rate derived from draft IEEE 802.11ac specifications. D-Link makes no warranties as to forward compatibility with future standards or compatibility with draft 802.11ac devices from other manufacturers. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Up to 1300Mbps wireless speeds achieved when connecting to other 802.11ac devices.
4 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
5 1-Year LimitedWarranty available only in theUSAandCanada.
6 ZeroConfiguration requires aD-LinkCloud Router and a ZeroConfiguration-enabled device.

Product Views:

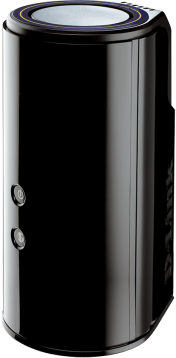

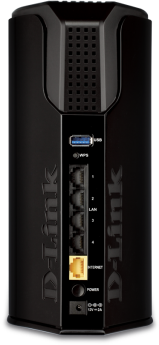

D-Link DIR-868L Left Angle View D-Link DIR-868L Rear View
D-Link DIR-868L Left Angle View D-Link DIR-868L Rear View

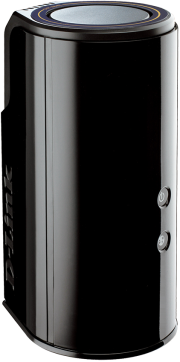

D-Link DIR-868L Right Angle View
D-Link DIR-868L Right Angle View

Documentation:

Download the D-Link DIR-868L Datasheet (PDF).
