D-Link DKVM-4K
4-Port PS/2 KVM Switch

D-Link DKVM-4K 4-Port PS/2 KVM Switch

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

This KVM switch allows you to minimize desktop clutter and control up to four computers with a single monitor, PS/2 mouse, and PS/2 keyboard.

Minimize Desktop Clutter

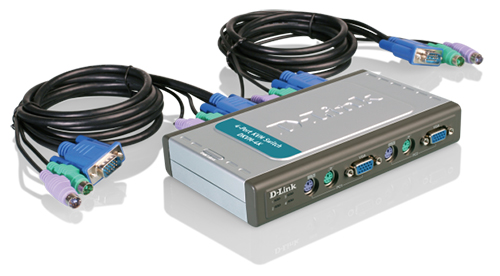

The D-Link® 4-Port PS/2 KVM Switch (DKVM-4K) is a cost-effective solution for controlling up to 4 computers* using a single monitor, PS/2 keyboard, and PS/2 mouse. With a sleek, compact design, the DKVM-4K minimizes desktop clutter by eliminating the need for multiple monitors and PS/2 devices.

Convenient Features
The DKVM-4K is convenient and simple to use with features such as at-a-glance LED indicators for computer status, port select push buttons and hot key support for easy switching between computers, autoscan mode for automatically detecting computers connected to the switch, and support for up to 2048 x 1536 video resolution. The DKVM-4K is also Plug-and-Play, allowing you to add or disconnect computers by simply unplugging the cables without having to power down.

The DKVM-4K comes with two 6-ft. standard KVM cables, requires no drivers, and is compatible with all Windows® Operating Systems. Versatile, portable, and convenient, the D-Link 4-Port PS/2 KVM Switch (DKVM-4K) can be easily integrated into your multiple computer workspace at home or in the office.

Additional Features
The D-Link DKVM-4K requires no drivers and is compatible with all Windows® Operating Systems. It automatically scans and detects attached PCs and recalls Caps/Numbers/Scroll Lock key status for each computer for added convenience. In addition, the DKVM-4K supports up to 2048 x 1536 video resolution and includes two 6ft standard KVM cables.

* Includes two 6ft standard KVM cables (DKVM-CB). Additional cables sold separately.

Technical Specifications:

D-Link DKVM-4K Specifications
Computer Control	Up to 4*
LEDs	Four (4) Port Status LEDs

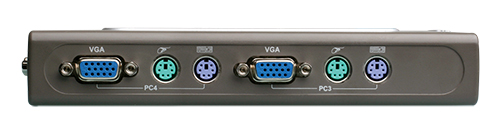

Console Connectors	Keyboard: 6-pin Mini-DIN Female PS/2 Monitor: 15-pin HDDB Female VGA SVGA XGA MultiSync Mouse: 6-pin Mini-DIN Female PS/
Monitor Resolution Support	Up to 2048 X 1536
Switching Control	Port Select Push Button Keyboard Hot Keys
Switching Notification	Audio Beep
Auto-scan Mode	Yes
Auto-Scanning Interval	10 seconds
Power	Bus Powered (No External Power Adapter Required)
Dimensions	Item (WxDxH): 4.1” x 7.0” x 1.2” Packaging (WxDxH): 8.2” x 10.8” x 2.6”
Weight	Item: 0.6 lbs. Packaging: 2.8 lbs.
Temperature	Operating: 32°F to 122°F Storage: -4°F to 140°F
Humidity	Operating: 0% ~ 80% Non-condensing Storage: 0% ~ 80% Non-condensing
Certifications	FCC Class B CE
Warranty	1-Year Limited**
Minimum System Requirements	Computer with: PS/2 Input Ports VGA Output Port PS/2 Keyboard PS/2 Mouse VGA Monitor
Package Contents	4-Port PS/2 KVM Switch (DKVM-4K) Two 6ft Standard KVM Cables (DKVM-CB) (Additional KVM Cables Sold Separately) Quick Installation Guide

* Includes two 6ft standard KVM cables (DKVM-CB). Additional cables sold separately.
** 1-Year Limited Warranty available only in the USA and Canada.

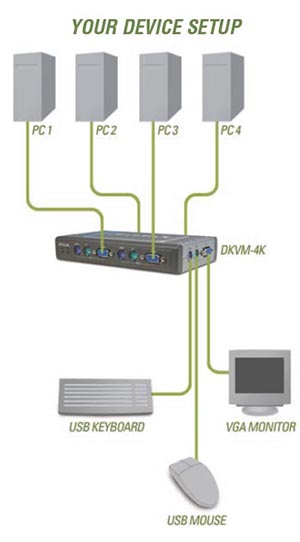

Diagram:

What this product does
The D-Link® 4-Port PS/2 KVM Switch (DKVM-4K) allows you to control up to four computers* using just one monitor, PS/2 keyboard, and PS/2 mouse. Conveniently switch between connected computers with a push of a button or use the hot key shortcuts on your keyboard for more advanced switching options. Minimize desktop clutter and simplify your workspace with the compact, time-saving 4-Port PS/2 KVM Switch.

* Includes two 6ft standard KVM cables (DKVM-CB). Additional cables sold separately.

Documentation:

Download the D-Link DKVM-4K Datasheet (PDF).
