D-Link DKVM-4U
4-Port USB KVM Switch

D-Link DKVM-4U

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

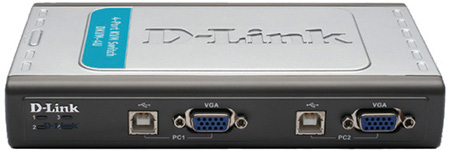

D-Link DKVM-4U Front View

The D-Link 4-Port USB KVM Switch (DKVM-4U) allows you to control up to 4 PCs using one monitor, USB keyboard and USB mouse. It is ideal for anyone who has to work with more than one computer to eliminate the need for additional monitors, keyboards and mice, saving the money and freeing up the desktop space.

Easy Access and Control
Instantly switch between multiple computers with a keyboard hotkey or the select button. The front panel LED indicators display your computer status so you can easily determine which computer is active. With the Autoscan function, the D-Link DKVM-4U KVM switch automatically switches between computers at 10-second intervals for operation-free computer monitoring. Features mouse and keyboard emulation to ensure error free booting.

Convenient Features
The D-Link DKVM-4U KVM switch supports up to 2048 x 1536 video resolution. Hot-plug compliant allows you to add or disconnect computers without turning your PC off. The DKVM-4U comes with two sets of 6-ft. KVM cables and requires no drivers to install. Versatile, portable, and convenient, the D-Link 4-Port USB KVM Switch (DKVM-4U) can be easily integrated into your multiple computer workspace at home or in the office.

Product Features:

  • Control up to four computers using a single USB keyboard, USB mouse and monitor
  • Supports up to 2048 x 1536 video resolution
  • Supports VGA.SVGA and Multisync monitors
  • Hot-Keys and Select Button for easy switching
  • Auto-scan mode for detecting connected computers
  • Audible feedback when switching
  • Front panel status LEDs
  • Hot-plug support
  • Microsoft® IntelliMouse® and Microsoft IntelliMouse Explorer® Support
  • Keyboard and Mouse emulation for error-free boot up
  • Bus Power, no external adapter required
  • Plug and Play - no drivers required

Technical Specifications:

D-Link DKVM-4U Specifications
Computer Control
  • Keyboard & Mouse: 4 x USB 2.0
  • Monitor: 4 x DB-15 HDDB
LEDs Four (4) Port Status LEDs
Console Connectors
  • Keyboard: 1 x USB female
  • Mouse: 1 x USB female
  • Monitor: 1 x DB-15 HDDB female VGA, SVGA, XGA, MultiSync
Monitor Resolution Support Up to 2048 X 1536
Switching Control
  • Keyboard Hot Keys
  • Select Button
Switching Notification Audio Beep
KVM Cable Length 6 Ft.
Auto-Scanning Interval 10 seconds
Power Bus Powered (No External Power Adapter Required)
Dimensions 7" x 4.1" x 1.2" (178mm x 105mm x 30.5 mm)
Weight 0.61 lb (275 grams)
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity 80% Maximum (Non-condensing)
Certifications
  • FCC Class B
  • CE
Warranty 1-Year Limited*
Minimum System Requirements
  • Computer with:
    • Windows® 7 , Windows Vista®, Windows® 2000, Windows 98SE, or Mac OS (9.0 and higher)
  • USB keyboard
  • USB mouse
  • VGA monitor
  • Computers with available USB ports
Package Contents
  • DKVM-4U USB KVM Switch
  • 2 sets of 6ft USB KVM cables
  • Quick Install Guide

* 1-Year Limited Warranty available only in the USA and Canada.

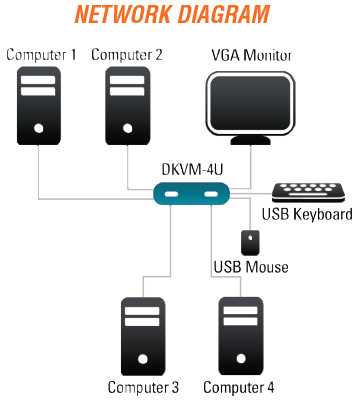

Diagram:

D-Link DKVM-4U Diagram

Documentation:

Download the D-Link DKVM-4U Datasheet (PDF).
