D-Link DNR-312L
mydlink Network Video Recorder with HDMI Output

D-Link DNR-312L

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!


The DNR-312L mydlink Network Video Recorder with HDMI Output is a standalone storage device that can record video from up to nine network cameras to its dedicated HDD storage1 without requiring users to turn on their PC. Powered by mydlink technology, the DNR-312L supports real-time remote monitoring and playback via a web browser using the mydlink website or the NVR’s web GUI. The DNR-312L has the ability to continue recording while a user is viewing or searching footage. The DNR-312L’s HDMI display output and playback ability make it a convenient and effective standalone video recorder.

mydlink Technology on your Mobile Device

The DNR-312L enables users to remotely view and manage mydlink enabled devices from anywhere via a web browser using the mydlink website or the NVR’s web interface. With the mobile app, view your DNR-312L from your iOS or Android mobile devices.

Versatile Monitoring

Users are provided with a variety of options for viewing and organizing camera footage onscreen. For a system with multiple channels, users can simply drag and drop selected cameras to the viewing area. Camera name, frame rate, bandwidth and recording status are shown on the on-screen display. A single camera may be viewed full-screen with two-way audio support. Users can control pan/tilt/zoom (PTZ) functions from within the interface or by directly clicking on the video.

Secure Storage

Administrators may filter external connections to the NVR by IP address, limiting access and increasing security. Administrators may also choose access privileges for users by specifying the cameras they may access. The recorded data can also be backed up to additional storage locations.

Extensive Recording Functionality

The DNR-312L’s interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a userdefined schedule. The NVR also provides event recording based on specific triggers such as when motion is detected.

Convenient and Reliable

The DNR-312L can manage multiple network cameras, providing direct access to view live video and play recorded data over the Internet from anywhere, anytime. With complete video management and the ability to playback and record video simultaneously, the DNR-312L is an extremely convenient and effective video recorder. And the small size and portability of the DNR-312L make it easy to deploy in any location.

Bundled NVR Software

The NVR software bundled with the DNR-312L consists of three main components including a Playback Manager, a Backup System, and an NVR search tool. The Playback Manager includes a simple web GUI interface that allows users to play, search, or export video. The Backup System is a flexible backup utility that greatly simplifies the process of backing up video data from the NVR to external storage.

1 Hard disk not included.


Trustworthy Surveillance

  • Reliable network camera surveillance recorder for small business and residential users
  • View real-time and recorded video of up to nine D-Link cameras from anywhere in your home or office, or remotely via the Internet
  • H.264, MPEG-4 and MJPEG video formats

Convenient Interface

  • Effortless network camera setup and management
  • User-friendly interface provides 9 channels of simultaneous live view, recording, and playback and PTZ control
  • Continuous, scheduled or motion detection recording with automatic overwrite function

Precision Technology

  • One-bay SATA 3.5” HDD interface, up to 4 TB of hard disk storage space of recorded video1

Flexible and Scalable

  • Stand-alone device: Eliminates the need for a dedicated PC
  • Supports D-Link network cameras
  • Power fail recovery recording
  • One Gigabit Ethernet LAN port
1 Hard disk not included.

Technical Specifications:

D-Link DNR-312L Specifications
  • IEEE 802.3/u/z
  • Auto MDI/MDI-X
  • Reformat Disk
  • Up to 4TB HDD
  • EXT3 file system
Two Reset Modes
  • Reboot device
  • Reset to factory defaults (hold for 10 seconds)
Flash ROM 128 MB
Network Interface Gigabit Ethernet LAN port (10/100/1000 Mbps)
I/O Ports
  • RJ-45 port
  • DC-in jack
  • HDMI
  • 2 x USB 2.0 port (Mouse, UPS, Flash Drive, HDD with external power)
  • 3.5mm audio input x 1, output x 1
Power Adapter DC 12V/3A
Software Features
OS Linux
Supported Cameras Supports D-Link network cameras with VGA to multi-megapixel resolution
System Requirements for Web Interface Browser: Internet Explorer, Firefox, Chrome, or Safari
Recording Performance
  • First video profile:
    • H.264 at 720p at 270 fps
  • Secondary video profile:
    • H.264 at VGA at 135 fps
Camera Search UPnP
Audio and Video Recording Synchronized audio & video recording
Compression Format H.264, MPEG-4, MJPEG
Video Setting Resolution, quality, frame rate, enable audio, go to camera interface
Recording Type
  • Record by schedule, manual, and event-based recording
  • Motion-triggered recording
Remote Live View
  • Supported via browser
  • Supports mydlink portal and mobile apps
Remote Live View Control
  • Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom
  • e-map
Remote Playback Control Playback with normal, fast forward/rewind and step forward/rewind
Remote Playback
  • Supported via browser and NVR client
  • Playback system with timeline GUI, search by event, area, cameras, date, and time
  • Browser or NVR Remote Client support four channel simultaneous playback
  • Digital zoom
Overwrite Recording Auto recycling when disk storage is full
File Export
  • Local : Export videos to AVI
  • Remote: Export videos to AVI or ASF file
  • Export images to BMP or JPG file
User Account Additional accounts can be created to allow users system access and specify authorization for camera channels, PTZ
DDNS D-Link DDNS and DynDNS server support
System Time Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)
Remote Backup Remote backup software can backup raw data to redundant storage
System Status
  • Camera status
  • Still picture EMAP support
  • System status
Network Service Protocols
  • DHCP Client
  • NTP Client
  • DNS Client
  • DDNS Client
  • SMTP Client
  • FTP Client
  • HTTP Server
  • IP filtering
  • UPnP
  • Bonjour
  • SNMP
User Interface
  • HTTP Web browser
  • mydlink portal
  • Smart phone / tablet
  • NVR Search utility
Package Contents
  • mydlink Network Video Recorder with HDMI Output
  • Power Adapter
  • Ethernet Cable
  • Quick Installation Guide
  • CD-ROM with:
    • Software
    • Product Documentation
Weight 15 ounces (425 grams)
Maximum Power Consumption 30 W
  • Operating: 32° to 104°F (0° to 40˚ C)
  • Storage: -4° to 158˚ F (-20° to 70˚ C)
Humidity 5% to 90% non-condensing
  • CE
  • FCC
  • RoHS
  • BSMI
1 Hard disk not included.

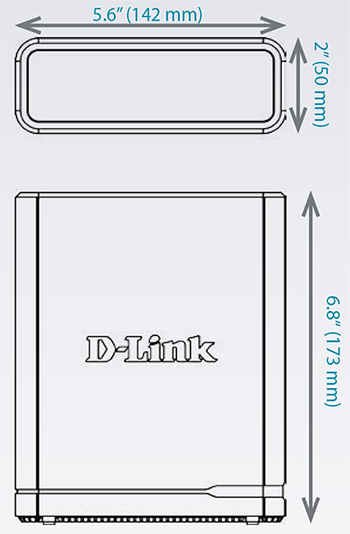

DNR-312L Diagram


Download the D-Link DNR-312L Datasheet (PDF).
