D-Link DP-301P+
Fast Ethernet Print Server

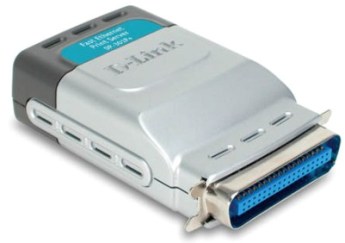

D-Link DP-301P+ Fast Ethernet Print Server

Sorry, this product is no longer available. Please contact us for more information.

Overview:

Express EtherNetwork

D-Link, an industry leader in networking, introduces the DP-301P+ Express EtherNetworkTM Fast Ethernet Print Server. The DP-301P+ is a compact print server that allows you to share your parallel printer on an Ethernet network. Now, everyone on your network can enjoy the benefits of sharing a single printer.

The DP-301P+ is a great alternative to software-based printer sharing. The DP-301P+ eliminates the need to have your printer connected to a host computer. With the DP-301P+, everyone on your network can be sure that their printing jobs go through at any time. Documents also print faster from the DP-301P+ than from software-based printer sharing solutions.

The DP-301P+ is designed to make installation simple. It has a built-in Centronics connector that connects directly to your printer without the hassle of using a printer cable. Its compact size makes placement of the DP-301P+ easy—even in areas with limited space.

The DP-301P+ supports all the major networking protocols such as TCP/IP, NetBEUI, AppleTalk, and EtherTalk. It is compatible with computers running Windows, Macintosh, Linux, and all other TCP/IP compatible operating systems.

The DP-301P+ is easily configured using a Web-browser. With the user-friendly Web-based setup, you can quickly configure your DP-301P+ Print Server from any computer on the network. A PSAdmin configuration program is also included to configure your DP-301P+ for Windows-based systems.

Add the DP-301P+ to your home, school, or small office network for the convenience of a shared network printer.

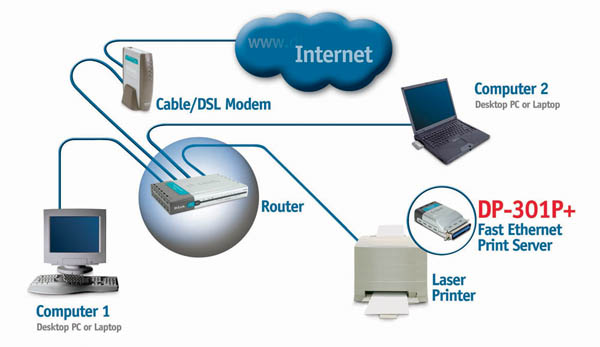

DP-301P+ Diagram

Technical Specifications:

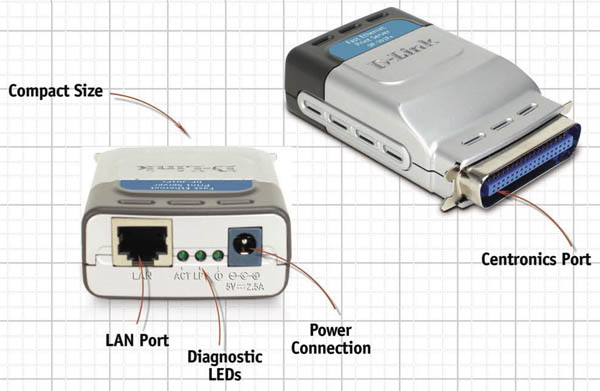

DP-301P+ Detailed View
D-Link DP-301P+ Specifications
Standards
  • IEEE 802.2b
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 1284
Ports
  • 10/100 Mbps Fast Ethernet
  • Parallel Port with Centronics Connector
Data Transfer Rate 10/100Mbps
Transport Protocols
  • TCP/IP
  • NetBEUI
  • AppleTalk/EtherTalk
TCP/IP Protocols Supported
  • BOOTP
  • SNMP
  • Telnet
  • TFTP
  • FTP
  • LPD
  • RARP
  • DHCP
Management SNMP
MIBs MIB-II (RFC 1213)
Diagnostic LEDs
  • Power
  • Link/Activity
  • LPT
Power Input
  • External Power Supply
  • DC 5V, 2.5A
Dimensions
  • L = 3.54 inches (90mm)
  • W = 2.2 inches (56mm)
  • H = 1.02 inches (26mm)
Weight 0.32 lbs (147g)
Operating Temperature 0°C to 50°C
Storage Temperature -25°C to 55°C
Humidity 5% -95%, non-condensing
Warranty 1 Year

Documentation:

Download the D-Link DP-301P+ Datasheet (PDF).
