D-Link DSL-2750B
ADSL2+ Ethernet Modem

D-Link DSL-2750B

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

  • SharePort™ Technology to share files from a USB storage device or USB Printer with other users in your home network
  • QoS (Quality of Service) to guarantee bandwidth to delay-sensitive applications
  • 4 LAN Fast Ethernet ports for wired connections
  • 1 WAN ADSL port to connect to ADSL lines
  • Wireless N 300 Technology: 6 times faster than wireless G
  • WPS button for one-touch wireless encryption
  • Built-in firewall and traffic inspection for a safe Internet experience
D-Link’s DSL-2750B Wireless N ADSL2+ Modem Router (Annex A) is the ideal Internet gateway for users that get their Internet connection through the phone line. This router connects directly to your telephone line without the need of an ADSL modem, and provides the fastest download streams. With Wireless N speeds of up to 300 Mbps and SharePort™ Technology, this router is suitable for users that want the most out of their home network.

High-Speed Wireless Networking


Create a high-speed wireless network for your home using this ADSL2+ Router. Connect the device to a broadband modem and wirelessly share your high-speed Internet connection at speeds of up to 300 Mbps. Enjoy surfing the web, checking email, and chatting with family and friends online. The router uses Wireless N technology, which offers increased speed and range over earlier standards. It uses Intelligent Antenna technology to transmit multiple streams of data by bouncing multiple wireless signals off of walls enabling you to receive wireless signals in the farthest corners of your home. The Wireless N ADSL2+ Modem Router also includes four Fast Ethernet ports that give you the flexibility to connect wired devices like Network Attached Storage (NAS) Enclosures to the network.

Share and Stream Files with Shareport™ Technology


Connect a USB storage device to the Wireless N ADSL2+ Modem Router to create a shared storage space, making it easy to share music, movies and documents between computers and devices connected to your network. Plug in a USB hard drive and access your library of videos and music on your laptop. You can even customise your shared storage space by creating separate accounts to control access to the USB drive, so you can share your music with everyone but keep your personal files private.

Smart traffic/bandwidth prioritisation

With some routers, all wired and wireless traffic, including Internet call such as Skype™, video streaming, online gaming, and web browsing are mixed together into a single data stream. By handling data this way, applications such as streaming video may stutter or have an unstable connection. With the D-Link Smart Quality of Service technology, wired and wireless traffic is analysed and separated into multiple data streams. Different applications like voice, video, and data will be automatically detected and prioritised so that you can stream without buffering and game without lag.

IPv6 ready

This router is ready for the future of the Internet with support for the upcoming move from IPv4 to IPv6. It carries the IPv6 Ready Gold Logo, meaning that it not only supports the IPv6 protocol, but is also compatible with IPv6 equipment from other manufacturers. Using a dual-stack architecture, this router can handle routing for both IPv4 and IPv6 networks at the same time, so you can be assured that your router is forward and backward compatible.

D-Link Green™


This router is part of D-Link GreenTM, D-Link’s programme for providing eco-friendly alternatives without compromising performance. This Modem Router supports WLAN Scheduler, which switches off the wireless network when not needed, for example at nights or during working hours. Also the power consumption is further reduced with its Energy StarTM power supply.

Actual product appearance may differ from the image displayed on this page.

Technical Specifications:

Device Interfaces
  • 1x RJ-11 ADSL port
  • 4x 10/100BASE-TX MDI/MDIX ports
  • 802.11n WLAN
  • 1x USB 2.0 port
Wireless
  • 802.11b/g/n standards
  • Up to 300 Mbps (802.11n)
  • Frequency range: 2.4 GHz to 2.484 GHz
  • 2x Non-detachable MIMO antennas
  • 64/128-bit WEP data encryption
  • WPA /WPA 2 (personal/enterprise) security
  • 802.1x RADIUS
  • WPS (Wi-Fi Protected Setup)
  • MAC address-based access control
ADSL standards
  • ADSL standards: Multi-mode, ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) Annex A, ITU G.992.2 (G.lite) Annex A, ITU G.994.1 (G.hs)
  • ADSL2 standards: ITU G.992.3 (G.dmt.bis) Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A
  • ADSL2+ standards: ITU G.992.5 Annex A/L/M
ADSL data rates
  • G.dmt: 8 Mbps downstream, 832 Kbps upstream
  • G.lite: 1.5 Mbps downstream, 512 Kbps upstream
  • ADSL2: 12 Mbps downstream, 1 Mbps upstream
  • ADSL2+: 24 Mbps downstream, 1 Mbps upstream
ATM & PPP protocols
  • ATM Adaptation Layer Type 5 (AAL5)
  • Bridged or routed Ethernet encapsulation
  • VC and LLC based multiplexing
  • PPP over Ethernet (PPPoE)
  • PPP over ATM (RFC 2364)
  • ITU-T I.610 OAM F4/F5
Network protocols
  • WAN/LAN Switchable Port
  • NAT (maximum 4096 NAT sessions)
  • DHCP server/client/relay
  • Universal Plug and Play (UPnP) Compliant
  • Dynamic Domain Name System (DDNS)
  • Virtual Server
Firewall/Access Security
  • Built-in NAT firewall
  • Stateful Packet Inspection (SPI)
  • DoS attack prevention
  • Packet filtering (IP/ICMP/TCP/UDP)
  • Intrusion Detection System (IDS)
  • DMZ
  • Parental Control (URL blocking, scheduling)
Virtual Private Network (VPN)
  • Multiple PPTP/IPSec/L2TP pass-through
Device Configuration/Management
  • Installation Wizard
  • Web-based GUI for configuration, firmware upgrade
  • Code lock to prevent improper firmware upgrade
  • Telnet
  • Syslog monitoring
Quality of Service (QoS)
  • LAN to WAN traffic prioritization/classification
  • Traffic Shaping
USB Applications:
  • Samba server
  • Printer server
Power Input
  • 12 V / 1 A, external
Diagnostic LEDs
  • Power
  • LAN (1 to 4)
  • WLAN
  • DSL
  • Internet
  • WPS
  • USB
Dimensions (L x W x H)
  • 182.8 x 127.8 x 32 mm
Weight
  • 236 grams
Temperature
  • Operating: 0 to 40 ˚C
  • Storage: -20 to 70 ˚C
Humidity
  • 5% to 95% non-condensing
Certifications
  • C-Tick
  • CE
  • FCC
  • IC
  • WHQL
  • Wi-Fi Certified
  • WPS

Product Views:

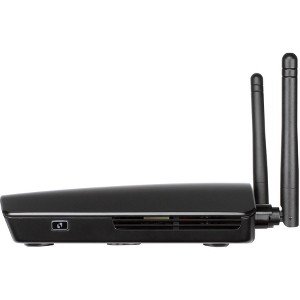

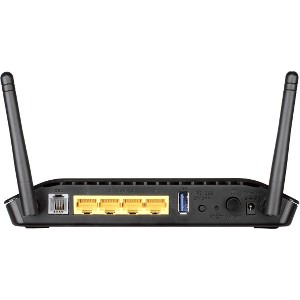

D-Link DSL-2750B Back View D-Link DSL-2750B Side View
D-Link DSL-2750B Back View D-Link DSL-2750B Side View
