D-Link GO-SW-16GE
16-Port Gigabit Unmanaged Metal Desktop or Rackmount Switch


D-Link GO-SW-16GE

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

The D-Link Go Series 16-Port Gigabit Unmanaged Desktop or Rackmount Switch are designed with Gigabit Ethernet connectivity with speeds up to 10x faster than 10/100 Ethernet and D-Link’s Green Technology for energy savings. These switches have a durable metal case that can be used on a desk or in a network rack (rack kit included). With diagnostic port LEDs on the front panel you can quickly detect and correct problems on your network.

The Go Series line of switches offer an economical way for small offices and home offices (SOHO) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

Gigabit on Every Port
The 16/24-Port Gigabit Go Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Easy to Install and Maintain
These switches were designed for Plug-and-Play and hassle-free installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance. Diagnostic LEDs allow for quick detection and correction of network problems.

Conserves Energy
The Go Series 16/24-Port Gigabit Unmanaged Switches help you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It also supports 802.3az Energy Efficient Ethernet and can save further power with EEE compatible devices.

Think Green
The D-Link Go 16/24-Port Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.

Features:

  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • 16 10/100/1000 Mbps Gigabit ports
  • 32Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • RoHS compliant
  • Plug-and-play installation

Package Contents

  • 16 port Gigabit Unmanaged Metal Desktop or Rackmount Switch (GO-SW-16GE)
  • Power Cord
  • Rubber Feet
  • Rackmount Kit
  • Quick Install Guide

Minimum System Requirements

  • Devices Supporting 802.3 Ethernet, 802.u Fast Ethernet, or 802.3ab Gigabit Ethernet
  • Cat5 or better Ethernet Cable
  • Network Interface Card for each computer

Technical Specifications:

  GO-SW-16GE GO-SW-24GE
Number of Ports Sixteen 10/100/1000 Gigabit Ports Twenty-four 10/100/1000 Gigabit Ports
Switching Fabric 32Gbps 48Gbps
Standards
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
Data Transfer Rat
  • Ethernet:
    • 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex), 200 Mbps (full duplex
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX
D-Link Green Features
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • RoHS Compliance
Switching Method Store-and-forward
MAC Address Table 8K MAC addresses
RAM Buffer 4 Mbits 512 KBytes
Jumbo Frames 9216 Bytes 9600 Bytes
QoS 4 Queues, strict mode
Physical Specifications
LEDs
  • Power LED
  • 16 Link/Activity/Speed LEDs (one per port)
  • Power LED
  • 24 Link/Activity/Speed LEDs (one per port)
DC Input 100 to 240V AC input
Power Consumption
  • Standby: 4.78 watts
  • Maximum: 10.24 watts
  • Standby: 6.5 watts
  • Maximum: 13.5 watts
Heat Dissipation
  • Power On (Standby) AC input: 16.3 BTU/h
  • Maximum DC input: 34.94 BTU/h
  • Power On (Standby) AC input: 22.165 BTU/h
  • Maximum DC input: 44.035 BTU/h
MTBF 795,539hours 633,536 hours
Operating Temperature 23º to 104º F (0º to 40º C)
Storage Temperature 14º to 158º F (-10º to 70º C)
Humidity 5% to 90% RH non-condensing
Dimensions 11.02 (W) x 4.92 (D) x 1.73 (H) inches
(280 x 125 x 44 mm)
11.02 (W) x 7.09 (D) x 1.73 (H) inches
(280 x 180 x 44 mm)
Weight 2.29 lbs. (1.04 kg) 2.95 lbs. (1.34 kg)
Certifications
  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • C-Tick Class A
  • cUL
  • CB
Warranty
Warranty 5 Year Limited Warranty

Product Views:

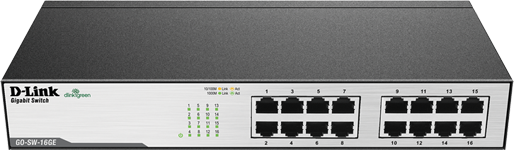

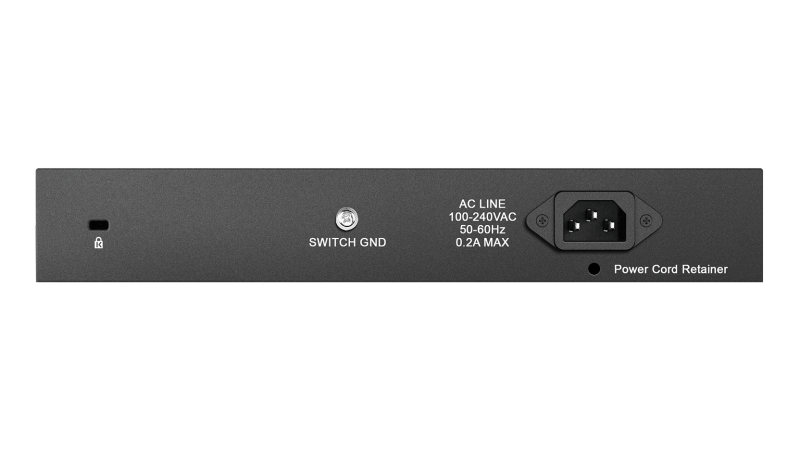

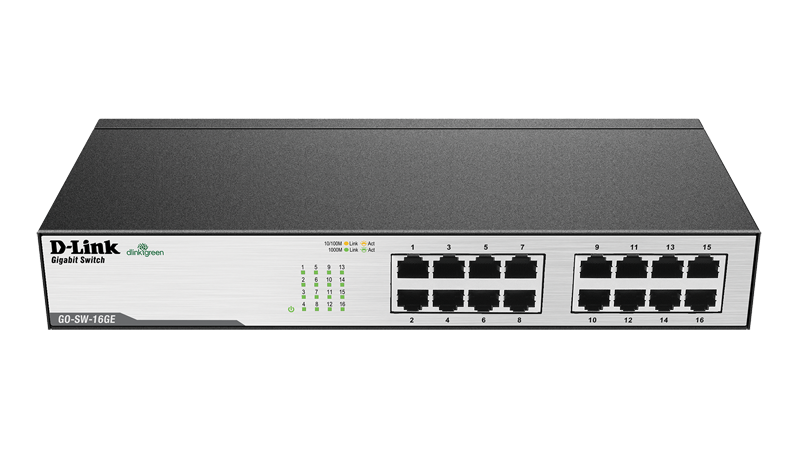

Front View Rear View
Front View Rear View

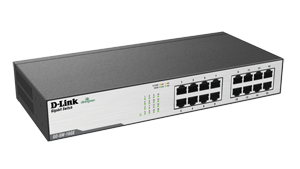

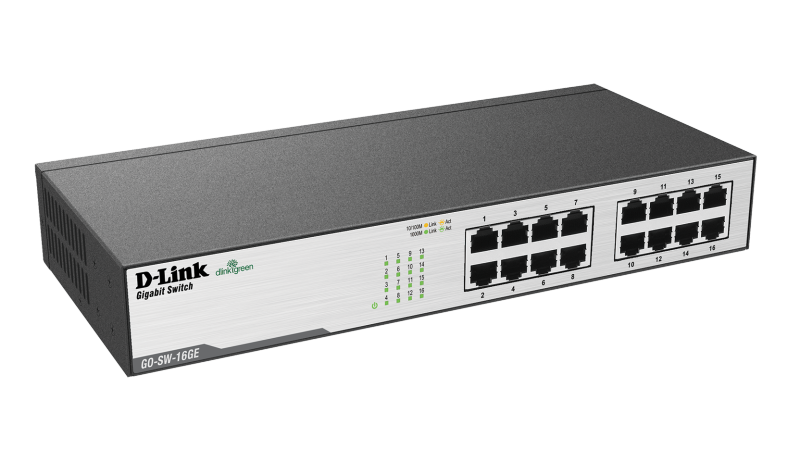

Right Angle View
Right Angle View

Documentation:

Download the D-Link GO-SW-16GE/24GE Datasheet (PDF).
