D-Link KVM-450
16-Port PS2 USB Combo KVM Switch

D-Link KVM-450

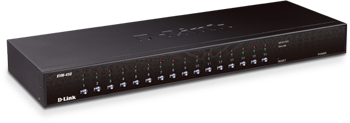

KVM-450 Angle KVM-450 Back

Sorry, this product is no longer available, please contact us for a replacement.


Versatile Management

The KVM-450 allows you to control and monitor up to 16 PS/2 and USB platform servers from a single console. Instantly toggle between multiple computers using the front panel buttons, keyboard hot-keys, or On-screen Display (OSD) menu. The OSD menu allows you to assign names to each connected PCs, providing easy and efficient server navigation. With a convenient Auto-Scan function, the KVM-450 automatically switches between multiple computers sequentially at preset intervals. Additionally, the front panel LEDs permit easy workstation/server status monitoring.

Convenient Installation

The sturdy metal chassis is mountable in a standard 19” system rack. Multiple KVM switches can be cascaded together up to three levels deep allowing control of up to 4096 servers from a single console. A PS/2 or USB keyboard is emulated on each terminal allowing all connected computers to successfully boot up without keyboard errors. Hot-plug compliant allows you to add or disconnect computers without turning your PCs off. The switch supports both USB and PS/2 platform servers and is fully compatible with all the major operating systems. Finally, upgradable firmware ensures compatibility with the latest hardware.

Additional Features

The KVM-450 supports VGA, SVGA, and MultiSync monitors at resolutions of up to 2048 x 1536 with refresh rates of up to 65 Hz. With the password protection function, this KVM switch allows you to specify the name and password for an administrator and up to 3 users to prevent unauthorized users from accessing the KVM Switch. Reliable, convenient and scalable, the D-Link 16-Port PS2/USB Combo KVM Switch is an ideal local remote management solution for your data center.

D-Link KVM-450 Specifications
Computer Connections
  • Single KVM:
    • 16
  • Cascade Chaining:
    • Up to 4096
Selection Method Switch Button, Hot-Keys (PS/2 Keyboard), and On-Screen-Display (OSD)
LEDs
  • Red for PC Selected
  • Green for PC On-Line/Ready
PC Connectors
  • 16 x HDB-15 female
  • Support both PS/2 and USB platform servers
Console Ports
  • Keyboard:
    • 1 x 6 pin mini-DIN female
  • Mouse:
    • 1 x 6 pin mini-DIN female
  • Video:
    • 1 x HDB-15 female
Firmware Upgrade Port Mini USB
Auto-Scan Interval 5 - 90 seconds
Video Resolution Max. resolution up to 2048 x 1536 @ 65 Hz
Hot-swappable Yes
Operating Systems Supported Windows 98SE/ME/2000/2003/2008/XP/Vista/7, Linux, Mac OS 9/OS X and Sun Microsystems
Power 5V, 2A
Housing Material Metal
Operating Temperature 32°-122°F (0-50°C)
Humidity 0%-80% Relative Humidity
Certifications FCC, CE, C-Tick, IC, CSA
Dimensions (L x W x H) 17.3 x 6.1 x 1.5 inches (44 x 15.7 x 4.5 cm)
Weight 4.2 lbs (1900 g)
Warranty 1 Year Limited2
Package Contents
  • 16-Port PS2/USB Combo KVM Switch (KVM-450)
  • 4 sets of 6ft 4-in-1 PS2/USB KVM cable
  • Rack Mount Bracket Kit Set
  • Power Adapter
  • CD-ROM with Manual and Software
  • Quick Install Guide

1 Cascade chaining for control of up to 512 (KVM-440) or 4096 (KVM-450) servers from a single console
2 1-Year Limited Warranty available only in the USA and Canada.
